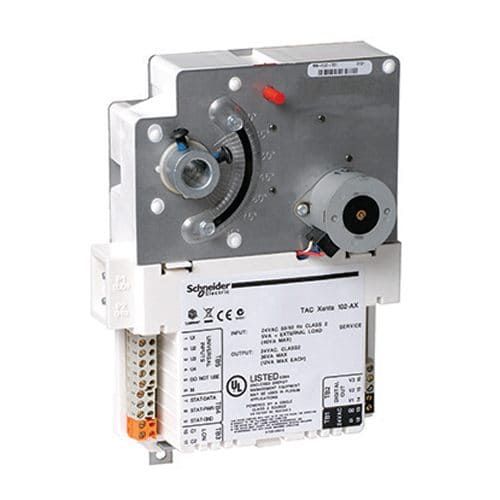

Schneider Electric 007305401 TAC Xenta® 102-AX VAV Controller with Actuator and Airflow Transducer

TAC Xenta 102-AX is a zone controller intended for VAV heating and cooling applications with one or two sta ges of reheating. The controller keeps a constant tem pera ture in the zone by controlling the air flow and hea   ting stages. By using a carbon dioxide sensor, the air quality can be controlled in the zone.

TAC Xenta 102-AX is equipped with an integrated, static air velocity transducer and a motorized bidirectional actuator in a single package.

The differential pressure air velocity transducer requires a minimum of maintenance. Thus it is also well suited to be placed in the zone return air duct.

The controller is a LonMark compliant device aimed at communicating on a LonTalk TP/FT-10 network via a twisted-pair, unpolarized cable. It is able to operate both as a stand-alone unit and as part of a system. All relevant net work variables can be monitored and configured via the Network Plug-in or, locally, via the intelligent thermostat device I/STAT or the commissioning device M/ STAT
