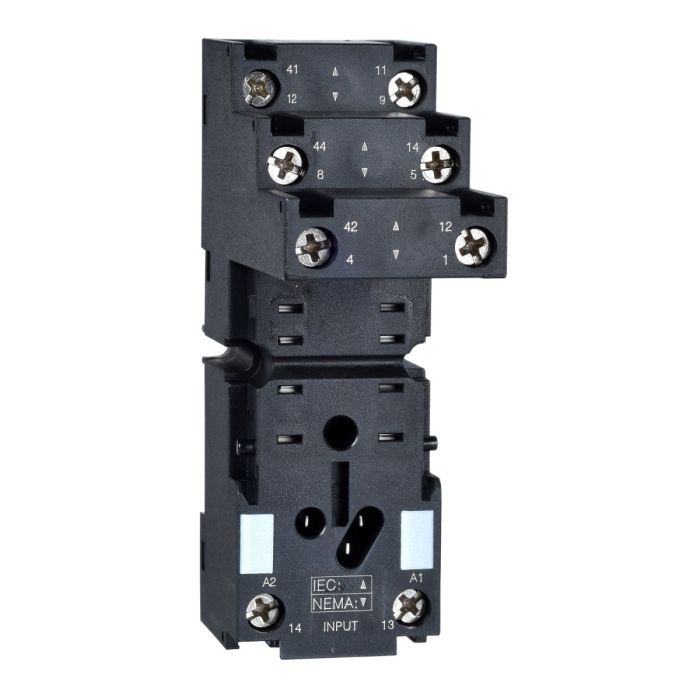

Schneider Electric Socket RXZ, Separate Contact - 12 A - < 250 V - Connector For Relay RXM2..
Range: Harmony Electromechanical Relays Harmony Timer Relays
Product type: Socket
[Ith] conventional free air thermal current: 12 A
[Ue] rated operational voltage: < 250 V
You May Also Like:
Schneider Electric Harmony Miniature Plug-In Relay, 6A, 4 C/O, 230V ACSpecial Price EGP 212 Regular Price EGP 366
Schneider Electric Interface plug-in relay,8 A,2 CO,230 V ACSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Socket for RSB1A Relays, Harmony, 12A, Screw Connectors, Separate ContactSpecial Price EGP 94 Regular Price EGP 161
Schneider Electric Universal Plug-in Relay - Harmony Electromechanical Relays, 10A, 3CO, Lockable Test Button, 24V ACSpecial Price EGP 417 Regular Price EGP 718
Schneider Electric Universal Plug-In Relay, Harmony Electromechanical Relays, 10A, 2CO, Lockable Test Button, 24V ACSpecial Price EGP 371 Regular Price EGP 640
Schneider Electric Slim Relay Mounted On Screw Socket With Led and Protection Circuit, 24 VSpecial Price EGP 589 Regular Price EGP 1,016
Schneider Electric Interface Plug-In Relay, Harmony Electromechanical Relays, 8A, 2 C/O, 48V DCSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Interface plug-in relay,8 A,2 CO,24 V DCSpecial Price EGP 161 Regular Price EGP 278
Schneider Electric Interface Plug-In Relay, Harmony Electromechanical Relays, 12A, 1 C/O, 230V ACSpecial Price EGP 182 Regular Price EGP 313
Schneider Electric Interface Plug In Relay, Harmony Electromechanical Relays, 8A, 2Co, 120V AcSpecial Price EGP 182 Regular Price EGP 278
"This Harmony RXZ plug-in relay socket has a coil control voltage of 250V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12A." "It has large choice of number of contacts for high rated current use with space-saving design." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Easy installation and connect to the relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)."
Specifications
| Main | |
| Range of product | Harmony Electromechanical Relays |
| Harmony Timer Relays | |
| Product or component type | Socket |
| contact terminal arrangement | Separate |
| Product compatibility | Plug-in relay RXM with 2 C/O contact |
| Plug-in relay REXL with 2 C/O contact | |
| Shape of pin | Flat |
| Device short name | RXZ |
| Sale per indivisible quantity | 10 |
| Complementary | |
| [Ith] conventional free air thermal current | 12:00 ص |
| [Ue] rated operational voltage | < 250 V |
| Connections - terminals | Connector, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Connector, 1 x 0.25...1 x 2.5 mm² (AWG 22...AWG 17) flexible with cable end | |
| Connector, 1 x 0.5...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end | |
| Connector, 2 x 0.25...2 x 1 mm² (AWG 20...AWG 14) solid without cable end | |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) |
| Clip-on (35 mm symmetrical DIN rail) | |
| Marking | CE |
| Width | 27 mm |
| Net weight | 0.058 kg |
| Environment | |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| standards | IEC 61984 |
| product certifications | CSA |
| Lloyd's | |
| UL | |
| Ambient air temperature for storage | -40…85 °C |
| Ambient air temperature for operation | -40…55 °C |
| IP degree of protection | IP20 conforming to EN/IEC 60529 |
| Dielectric strength | 2500 V |
| Weight | 0.058000 |
|---|---|
| Brand | Schneider Electric |
| Model | RXZE2S108M |
| Range | Harmony Electromechanical Relays |
| Family | IDSIG |
| Type | Socket-Outlet |
| IP Degree of Protection | IP20 |
