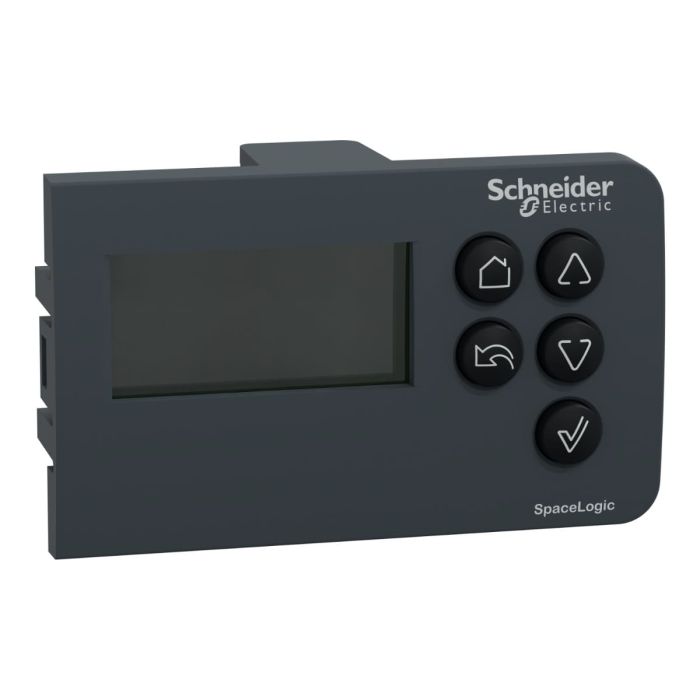

Override display module, SpaceLogic IP, for all MP-C models
Maximum power consumption in W: 0.15 W
Display type: FSTN monochrome LCD, White color transflective backlight
Display size: 36 x 17 mm
The SpaceLogic MP-C display is an optional add-on module for all SpaceLogic MP-C models. It features an LCD display with a resolution of 128 x 64 pixels and five keys. It can be used to manually override outputs for testing, commissioning and maintenance of equipment connected to the outputs. Its dimensions are 46 mm (1.8 in.) in height, 74 mm (2.9 in.) in width and 24 mm (0.9 in.) in depth. The display is compliant with EN ISO 16484-2. The display module is compatible with all SpaceLogic MP-C models.
Specifications:
Main | |
Net weight | 0.035 kg |
Directives | 2014/30/EU - electromagnetic compatibility |
Product or component type | Display |
UL | |
RCM | |
WEEE | |
RoHS | |
maximum power consumption in W | 0.15 W |
Height | 46 mm |
Model | MP-C DISPLAY |
ambient air temperature for storage | -40…70 °C |
Depth | 24 mm |
Display type | FSTN monochrome LCD |
White color transflective backlight | |
display size | 36 x 17 mm |
Ambient air temperature for operation | -30…60 °C |
display resolution | 128 x 64 pixels |
Keypad type | 5 keys |
Relative humidity | 0…95 % RH, non-condensing |
Standards | UL 916 |
ICES-003 class B | |
FCC CFR 47 part 15 class B | |
EN/ISO 16484-2 | |
Range compatibility | SpaceLogic SmartX MP-C controller |
Flame retardance | UL94-5VB |
| Weight | 0.035000 |
|---|---|
| Brand | Schneider Electric |
| Model | SXWMPCDSP10001 |
| Depth [cm] | 2.4 |
| Width [cm] | 7.4 |
| Height [cm] | 4.6 |
