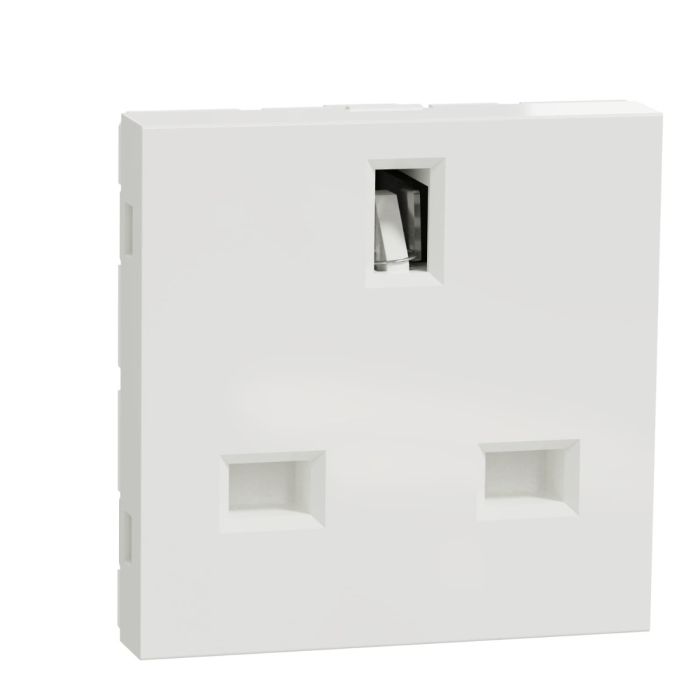

Schneider Electric New Unica British Socket-outlet with shutter 2P+E, 15A, Glossy White
Product Type: Socket Outlet Mechanism
Plug Type: 2P + E, 15A British
Shutter: Yes
Color: Glossy Untreated White
Schneider Electric New Unica socket-outlet NU304518 is a mechanism in color white. The outlet pole configuration of this socket-outlet is 2P + E with shutters, ensuring safety protection. This device respects the British standard. The dielectric strength of this socket-outlet is 2000V. Its rated current is 15A. Clip-in this socket-outlet for the fixation. It is 45 mm in width, 45 mm in height 33 mm in depth with an embedding depth of 30 mm. Its matching mounting box can be recessed into the surface of the wall with flush type. It reaches IP20 degree of protection which is very high. It reaches IK01 protection level, which can help protect against impact. This socket-outlet has screw terminals connection terminals. Being made of ASA + PC material, this socket-outlet is quite reliable and resistant. New Unica includes a suite of new designs, colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible, easy to understand and quick to install providing solutions for all customers requirements.
Main | |
Range | New Unica |
Product or component type | Socket-outlet |
Device presentation | Mechanism |
Device mounting | Flush |
Socket number | 1 |
Outlet poles configuration | 2P + E |
Outlet standard | British |
Outlet standard deviation | British |
Rated current | 13 A |
Complementary | |
Device application | Power supply |
Cover type | With shutter |
[Ue] rated operational voltage | 250 V |
Network type | AC |
Network frequency | 50/60 Hz |
Number of modules | 2 modules |
Fixing mode | Clip-in |
Colour tint | White (RAL 9003) |
Connections - terminals | Screw terminals |
Cable cross section | 0…4 mm² cable(s), 2 - cable stiffness: flexible |
0…4 mm² - cable stiffness: rigid | |
Minimum load breaking capacity | 100 operations 1.25 In and 1.1 Un, cos phi = 0.6 |
Electrical durability | 10000 cycles, cos phi = 0.8 |
Insulation resistance | > 5 MOhm at 500 V |
Dielectric strength | 2000 V |
Material | PC: mechanism cover |
PC (polycarbonate) GF10 FR: casing | |
Surface finish | Glossy |
Quantity per set | Set of 1 flow-pack |
Standards | IEC 60884-1 |
Embedding depth | 30 mm |
Depth | 33 mm |
Width | 45 mm |
Height | 45 mm |
Net weight | 0.0389 kg |
surface treatment | Untreated |
resistance to chemical agents | Resistant to alcohol (70 %) |
Resistant to alcohol (96 %) | |
Resistant to A-Lactic Acid | |
Resistant to diluted quaternary ammonium | |
Resistant to diluted bleach | |
Resistant to diluted ammonia | |
Resistant to soapy water | |
Resistant to crystal cleaner | |
Resistant to hydrogen peroxide 10 volumes | |
Resistant to hexane | |
Environment | |
Ambient air temperature for operation | -5…35 °C |
Ambient air temperature for storage | -5…50 °C |
IK degree of protection | IK01 |
IP degree of protection | IP21D |
Environmental characteristic | Oil |
UV resistant | |
Bleach | |
Petrol | |
Acetone | |
Liquid soap | |
Window-cleaning fluid | |
Alcohol |
Weight | 0.040000 |
---|---|
Brand | Schneider Electric |
Model | NU304518 |
Color | White |
Depth [cm] | 3.3 |
Width [cm] | 4.5 |
Height [cm] | 4.5 |
Range | Unica LRC |
Family | HDCWD |
Type | Socket-Outlet |
Number of Modules | 2 modules |
Device Application | Power Supply |
Fixing Mode | Clip-in |
[In] Rated Current | 13 A |
IP Degree of Protection | IP21D |
IK Degree of Protection | IK01 |
