Schneider Electric MPC 15 Points 8UI 6 DO
Range: SpaceLogic IP controller
maximum power consumption in W: 12 W
Power consumption in VA: 22 VA
Input/output type: 8 universal I/O
Memory type: 123 kB backup, 32 MB flash, 128 MB RAM

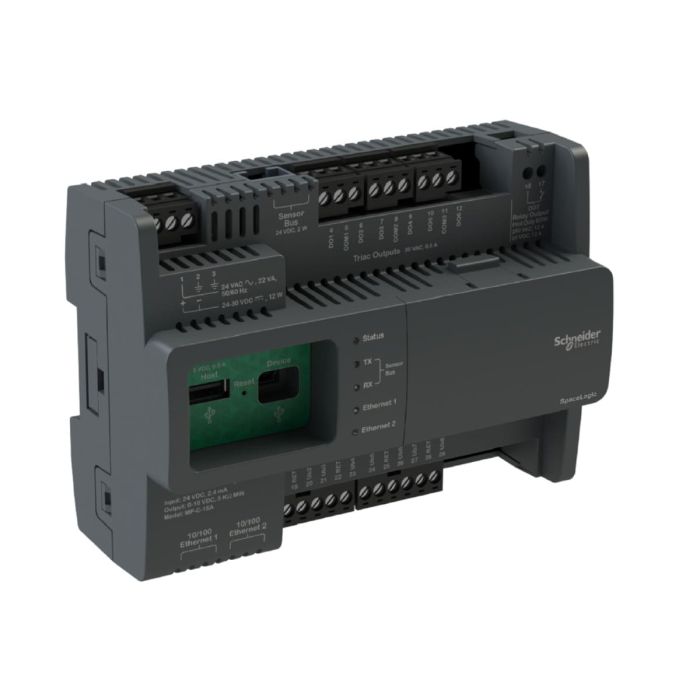

SpaceLogic MP-C Controller is a multi-purpose, fully programmable, IP based field controller ideal for plant room HVAC control. The MP-C models offer a flexible mix of I/O point types that suit a wide range of HVAC applications. It can be used as a standalone BACnet/IP controller or as part of an EcoStruxure BMS with a SpaceLogic AS-P or AS-B server or an Enterprise Server. The MP-C models support an optional display that provides insight and control of the inputs and outputs. The MP-C-15A has 8 Universal I/O Type Ub, 6 DO Triacs and 1 HP Relay I/O point. It supports the SpaceLogic IP-IO Expansion Modules for extended I/O point count. Its dimensions are 110 mm (4.3 in.) in height, 153 mm (6.0 in.) in width and 64 mm (2.5 in.) in depth. It is a UL 916 (Open Class Energy Management Equipment) listed product for the United States and Canada - UL file E80146. The device can be mounted in a DIN rail or other flat surface inside a cabinet. Available spare parts are terminal blocks (SXWMPCCON10001), DIN-RAIL-CLIP/end clip (SXWDINEND10001), eCommission Bluetooth Adapter (SXWBTAECXX10001).
Specifications:
Main | |
Maximum number of I/O expansion module | 3 |
Device application | Low voltage fan coil |
Product or component type | Field controller |
Device short name | MP-C-15A |
Function available | Programmable |
Smart sensor input | |
Topology | Star |
Daisy chain | |
Rapid Spanning Tree Protocol (RSTP) | |
Model | MP-C-15A |
Network frequency | 50 Hz |
60 Hz | |
Width | 153 mm |
mounting mode | DIN rail mount |
Panel-mounted | |
Product certifications | RCM |
CE | |
cUL listed | |
UL listed | |
maximum power consumption in W | 12 W |
Power consumption in VA | 22 VA |
ambient air temperature for storage | -40…70 °C |
Clock drift | +/- 1 min/month |
IP degree of protection | IP20 |
Input/output type | 8 universal I/O |
Input voltage | -0.5...24 V DC for universal input |
Memory type | 123 kB backup |
32 MB flash | |
128 MB RAM | |
Communication port support | ETHERNET 10/100BASE-TX |
[Us] rated supply voltage | 24 V AC +/- 20 % |
24...30 V DC | |
21...33 V DC | |
Number of outputs | 6 triac output |
1 relay output | |
Depth | 64 mm |
Protection type | MOV suppression |
Internal fuse | |
Output voltage | 250 V AC,12 A for high power relay output |
24 V DC,12 A for high power relay output | |
-0.5...24 V DC for universal output | |
24 V AC for triac output | |
Output current | 0.5 A max triac output |
Number of port | 2, connector type: RJ45 |
1, connector type: USB type A female | |
1, connector type: USB device port Mini-B | |
Complementary | |
Backup time | 7 days |
Flame retardance | UL94-5V |
Communication port protocol | BACnet IP |
Standards | UL 916 |
ICES-003 | |
EN 61000-6-2 | |
EN 50491-5-3 | |
EN 60730-1 | |
EN 60730-2-11 | |
EN 50491-3 | |
EN 61000-6-3 | |
EN 50491-5-2 | |
FCC part 15 Subpart B class B | |
Range compatibility | SpaceLogic IP controller |
| Weight | 0.360000 |
|---|---|
| Brand | Schneider Electric |
| Model | SXWMPC15A10001 |
| Color | Black |
| Depth [cm] | 6.4 |
| Width [cm] | 15.3 |
| Height [cm] | 11 |
| Range | SpaceLogic IP controller |
| IP Degree of Protection | IP20 |
