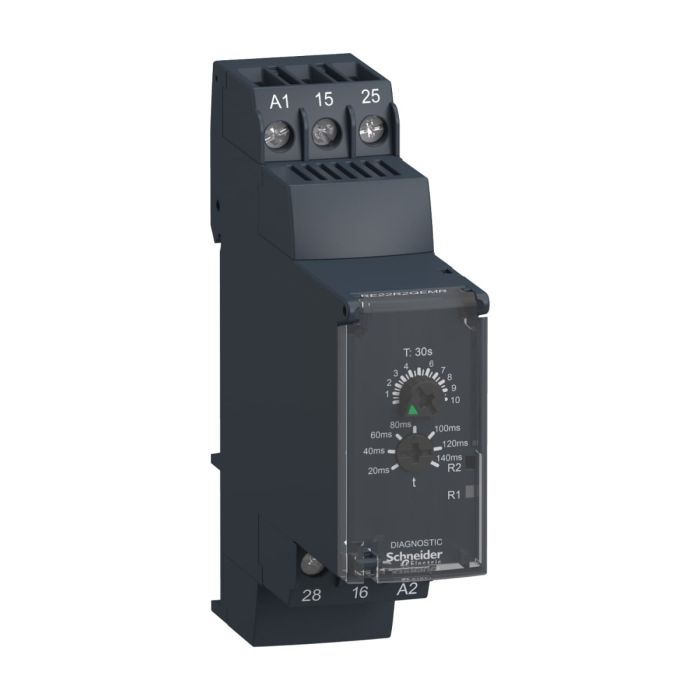

Schneider Electric Modular Timing Relay - 8A - 0.3s to 30s - 2 CO (Changeover) - Star-Delta - 24V DC/24-240V AC/DC
Range: Harmony Timer Relays
Product type: Single function relay
Control type: Rotary knob Diagnostic button
Output current: 8 A
This Harmony RE22 modular single function timer can be set between 1 seconds and 300 hours." "It provides function Qe and it is mountable on DIN rail." "This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers." "It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device." "It also offers a sealable cover, simple and precise settings with rotary trimmers." "Selectable timing range offers a one stop solution for your power management system." "Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC.
Key Features:
Modular Design: The modular design of the RE22R2QEMR ensures easy installation and integration into your control systems.
Wide Time Delay Range: With a time delay range from 0.3 seconds to 30 seconds, this relay offers flexibility to suit a wide range of timing requirements.
2 CO (Changeover) Contacts: Equipped with 2 changeover contacts, it allows you to switch between different circuits or devices with ease.
Voltage Compatibility: This relay is compatible with both 24V DC and a wide range of 24-240V AC/DC, making it adaptable to various voltage inputs.
Star-Delta Functionality: The star-delta function adds versatility to your timing control, providing an essential tool for motor control applications.
Specifications:
| Main | |
| Range of product | Harmony Timer Relays |
| Product or component type | Single function relay |
| Discrete output type | Relay |
| Device short name | RE22 |
| Nominal output current | 08:00 ص |
| Complementary | |
| Contacts type and composition | 2 C/O timed contact, cadmium free |
| Time delay type | Star-delta |
| Time delay range | 0.3...30 s |
| Control type | Rotary knob |
| Diagnostic button | |
| [Us] rated supply voltage | 24...240 V AC/DC 50/60 Hz |
| Release input voltage | <= 2.4 V |
| Voltage range | 0.85...1.1 Us |
| Supply frequency | 50...60 Hz +/- 5 % |
| Connections - terminals | Screw terminals, 1 x 0.5...1 x 3.3 mm² (AWG 20...AWG 12) solid without cable end |
| Screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end | |
| Screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 14) flexible with cable end | |
| Screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end | |
| Tightening torque | 0.6…1 N.m conforming to IEC 60947-1 |
| Housing material | Self-extinguishing |
| Repeat accuracy | +/- 0.5 % conforming to IEC 61812-1 |
| Temperature drift | +/- 0.05 %/°C |
| Voltage drift | +/- 0.2 %/V |
| Setting accuracy of time delay | +/- 10 % of full scale at 25 °C conforming to IEC 61812-1 |
| Insulation resistance | 100 MOhm at 500 V DC conforming to IEC 60664-1 |
| Recovery time | 120 ms on de-energisation |
| Immunity to microbreaks | 10 ms |
| Power consumption in VA | 3 VA at 240 V AC |
| Power consumption in W | 1.5 W at 240 V DC |
| Switching capacity in VA | 2000 VA |
| Minimum switching current | 10 mA at 5 V DC |
| Maximum switching current | 08:00 ص |
| Maximum switching voltage | 250 V AC |
| Electrical durability | 100000 cycles, 8 A at 250 V, AC-1 |
| 100000 cycles, 2 A at 24 V, DC-1 | |
| Mechanical durability | 10000000 cycles |
| Rated impulse withstand voltage | 5 kV for 1.2…50 µs conforming to IEC 60664-1 |
| Power on delay | 100 ms |
| Creepage distance | 4 kV/3 conforming to IEC 60664-1 |
| Overvoltage category | III conforming to IEC 60664-1 |
| Safety reliability data | B10d = 320000 |
| MTTFd = 353.8 years | |
| Mounting position | Any position |
| Mounting support | 35 mm DIN rail conforming to IEC 60715 |
| Status LED | LED backlight green (steady) for dial pointer indication |
| LED yellow (steady) for output relay energised | |
| LED yellow (fast flashing) for timing in progress and output relay de-energised | |
| LED yellow (slow flashing) for timing in progress and output relay energised | |
| Width | 22.5 mm |
| Net weight | 0.09 kg |
| Environment | |
| Dielectric strength | 2.5 kV for 1 mA/1 minute at 50 Hz between relay output and power supply with basic insulation conforming to IEC 61812-1 |
| standards | IEC 61812-1 |
| UL 508 | |
| Directives | 2006/95/EC - low voltage directive |
| 2004/108/EC - electromagnetic compatibility | |
| product certifications | CE |
| CSA | |
| GL | |
| EAC | |
| UL | |
| RCM | |
| CCC | |
| Ambient air temperature for operation | -20…60 °C |
| Ambient air temperature for storage | -40…70 °C |
| IP degree of protection | IP40 housing: conforming to IEC 60529 |
| IP20 terminals: conforming to IEC 60529 | |
| IP50 front panel: conforming to IEC 60529 | |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Vibration resistance | 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 |
| Shock resistance | 15 gn not operating for 11 ms conforming to IEC 60068-2-27 |
| 5 gn in operation for 11 ms conforming to IEC 60068-2-27 | |
| Relative humidity | 95 % at 25…55 °C |
| Electromagnetic compatibility | Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4 |
| Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5 | |
| Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5 | |
| Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2 | |
| Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2 | |
| Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3 | |
| Conducted RF disturbances - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6 | |
| Fast transient bursts - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4 | |
| Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11 | |
| Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11 | |
| Weight | 0.090000 |
|---|---|
| Brand | Schneider Electric |
| Model | RE22R2QEMR |
| Width [cm] | 2.25 |
| Range | Zelio Timers |
| Family | IDSIG |
| Type | Modular timing relay |
