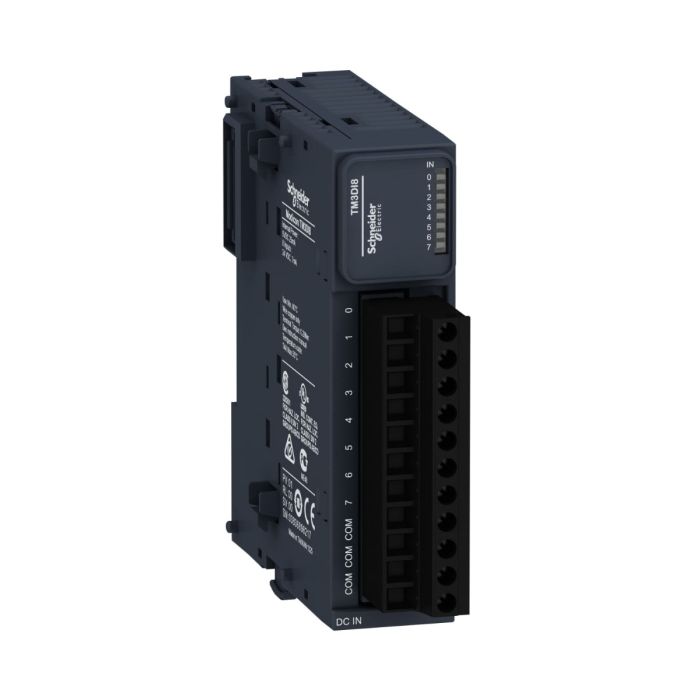

Modicon TM3 8-Inputs, Screw Terminals, 24V DC, Schneider Electric
Special Price EGP 4,264 Regular Price EGP 7,352
Modicon TM3 8-Inputs, Screw Terminals, 24V DC, Schneider Electric is available to buy in increments of 1
Quick Overview
Range of product: Modicon TM3
Product type: Discrete input module
inputs number: 8
Discrete input current: 7 mA for input
Introducing the Schneider Electric TM3DI8 Modicon TM3 8-Inputs, a reliable and versatile solution for your industrial automation needs.
This module is designed to provide precise input control and automation with eight digital inputs, making it ideal for various applications.
Key Features:
Versatile Inputs: The TM3DI8 offers eight digital inputs, enabling precise control and monitoring of various devices.
Screw Terminals: Screw terminals simplify installation and ensure a secure connection.
24V DC: This module operates at 24V DC, suitable for a wide range of industrial setups.
Technical Specifications:
Digital Inputs: 8
Terminals: Screw Terminals
Voltage: 24V DC
Specifications
| Main | |
| Range of product | Modicon TM3 |
| Product or component type | Discrete input module |
| range compatibility | Modicon M241 |
| Modicon M251 | |
| Modicon M221 | |
| Modicon M262 | |
| Discrete input number | 8 for input conforming to IEC 61131-2 Type 1 |
| Discrete input logic | Sink or source (positive/negative) |
| Discrete input voltage | 24 V |
| Discrete input current | 7 mA for input |
| Complementary | |
| Discrete I/O number | 8 |
| Current consumption | 5 mA at 5 V DC via bus connector (at state off) |
| 0 mA at 24 V DC via bus connector (at state on) | |
| 0 mA at 24 V DC via bus connector (at state off) | |
| 24 mA at 5 V DC via bus connector (at state on) | |
| discrete input voltage type | DC |
| Voltage state 1 guaranteed | 15...28.8 V for input |
| Current state 1 guaranteed | >= 2.5 mA (input) |
| Voltage state 0 guaranteed | 0...5 V for input |
| Current state 0 guaranteed | <= 1 mA (input) |
| Input impedance | 3.4 kOhm |
| Response time | 4 ms (turn-on) |
| 4 ms (turn-off) | |
| Local signalling | 1 LED per channel (green) for input status |
| Electrical connection | 11 x 2.5 mm² removable screw terminal block with pitch 5.08 mm adjustment for inputs |
| Maximum cable distance between devices | Unshielded cable: <30 m for regular input |
| Insulation | Between input and internal logic at 500 V AC |
| Non-insulated between inputs | |
| Marking | CE |
| Mounting support | Top hat type TH35-15 rail conforming to IEC 60715 |
| Top hat type TH35-7.5 rail conforming to IEC 60715 | |
| plate or panel with fixing kit | |
| height | 90 mm |
| Depth | 84.6 mm |
| Width | 27.4 mm |
| Net weight | 0.085 kg |
| Environment | |
| standards | EN/IEC 61131-2 |
| product certifications | CE |
| cULus | |
| UKCA | |
| RCM | |
| EAC | |
| cULus HazLoc | |
| Resistance to electrostatic discharge | 8 kV in air conforming to EN/IEC 61000-4-2 |
| 4 kV on contact conforming to EN/IEC 61000-4-2 | |
| Resistance to electromagnetic fields | 10 V/m 80 MHz...1 GHz conforming to EN/IEC 61000-4-3 |
| 3 V/m 1.4 GHz...2 GHz conforming to EN/IEC 61000-4-3 | |
| 1 V/m 2 GHz...3 GHz conforming to EN/IEC 61000-4-3 | |
| Resistance to magnetic fields | 30 A/m 50/60 Hz conforming to EN/IEC 61000-4-8 |
| Resistance to fast transients | 1 kV for I/O conforming to EN/IEC 61000-4-4 |
| Surge withstand | 1 kV I/O common mode conforming to EN/IEC 61000-4-5 DC |
| Resistance to conducted disturbances | 10 V 0.15...80 MHz conforming to EN/IEC 61000-4-6 |
| 3 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) conforming to Marine specification (LR, ABS, DNV, GL) | |
| Electromagnetic emission | Radiated emissions - test level: 40 dBμV/m QP class A ( 10 m) at 30…230 MHz conforming to EN/IEC 55011 |
| Radiated emissions - test level: 47 dBμV/m QP class A ( 10 m) at 230…1000 MHz conforming to EN/IEC 55011 | |
| Ambient air temperature for operation | -10…35 °C vertical installation |
| -10…55 °C horizontal installation | |
| Ambient air temperature for storage | -25…70 °C |
| Relative humidity | 10…95 %, without condensation (in operation) |
| 10…95 %, without condensation (in storage) | |
| IP degree of protection | IP20 with protective cover in place |
| Pollution degree | 2 |
| Operating altitude | 0...2000 m |
| Storage altitude | 0…3000 m |
| Vibration resistance | 3.5 mm at 5…8.4 Hz on DIN rail |
| 3 gn at 8.4…150 Hz on DIN rail | |
| 3.5 mm at 5…8.4 Hz on panel | |
| 3 gn at 8.4…150 Hz on panel | |
| Shock resistance | 15 gn for 11 ms |
| Weight | 0.085000 |
|---|---|
| Brand | Schneider Electric |
| Model | TM3DI8 |
| Depth [cm] | 84.6 |
| Width [cm] | 27.4 |
| Height [cm] | 90 |
| Range | M2xx Access. |
| Family | IDMST |
