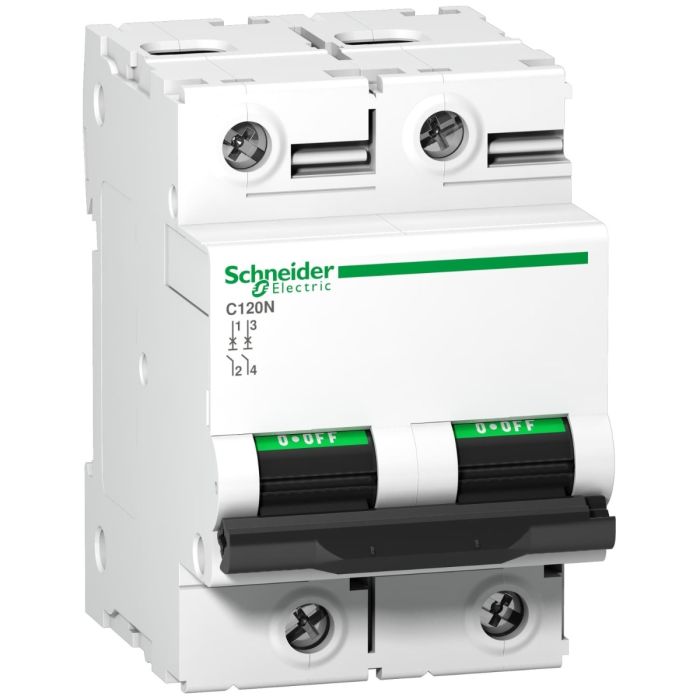

Acti9 C120N 80 A Miniature Circuit Breaker 2P, C curve, Schneider Electric
Poles description: 2P
Number of protected poles: 2
[In] rated current: 80 A at 30 °C
Curve code: C
Are you in need of robust circuit protection for your electrical systems? Look no further! The A9N18361 Miniature Circuit Breaker from Schneider Electric is here to safeguard your circuits and keep your electrical installations running smoothly.
Key Features:
Double-Pole Design: This 2P circuit breaker offers reliability and stability to protect your circuits.
Impressive Capacity: With an 80A rating, it can handle various electrical loads with ease.
C-Curve: It's designed to trip quickly in the event of a short circuit, providing enhanced protection.
High Breaking Capacity: With a 10 kA IEC 60898-1 and 10000A IEC 60947-2 breaking capacity, it can handle high fault currents.
User-Friendly: Its user-friendly design makes installation and operation a breeze.
Robust Build: Crafted to last, ensuring longevity and dependability in your electrical system.
The A9N18361 Miniature Circuit Breaker is designed to meet your electrical protection needs, providing peace of mind and uninterrupted performance. With its user-friendly design and impressive specifications, it's the perfect choice for homes, businesses, and industrial applications.
Get the A9N18361 Miniature Circuit Breaker today and elevate your electrical safety and reliability to the next level!
" "
| Specifications | |
Main | |
| Range of product | C120 |
| Range | Acti9 |
| Product name | C120 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C120N |
| Device application | Distribution |
| Poles description | 2P |
| Number of protected poles | 2 |
| Neutral position | Left |
| [In] rated current | 80 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code | C |
| Breaking capacity | 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| 10 kA Icu at <= 250 V DC conforming to EN/IEC 60947-2 | |
| 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 | |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Complementary | |
| Network frequency | 50/60 Hz |
| [Ue] rated operational voltage | 380...415 V AC 50/60 Hz |
| 220...240 V AC 50/60 Hz | |
| 440 V AC 50/60 Hz | |
| <= 250 V DC | |
| 230...400 V AC 50/60 Hz | |
| Magnetic tripping limit | 5...10 x In |
| [Ics] rated service breaking capacity | 7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz |
| 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz | |
| 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz | |
| 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz | |
| 10 kA 100 % conforming to EN/IEC 60947-2 - <= 250 V DC | |
| Limitation class | 3 conforming to EN/IEC 60947-2 |
| [Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
| Contact position indicator | Yes |
| control type | Toggle |
| Local signalling | ON/OFF indication |
| Mounting mode | Clip-on |
| mounting support | 35 mm symmetrical DIN rail |
| Comb busbar and distribution block compatibility | YES |
| 9 mm pitches | 6 |
| height | 81 mm |
| Width | 54 mm |
| Depth | 73 mm |
"
| Weight | 0.410000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9N18361 |
| Color | White |
| Device Application | Distribution |
| Depth [cm] | 7.3 |
| Width [cm] | 5.4 |
| Height [cm] | 8.5 |
| Range | C120 |
| Family | HDCFD |
| Type | Miniature circuit-breaker |
| Poles | 2P |
| [In] Rated Current | 80 A at 30 °C |
