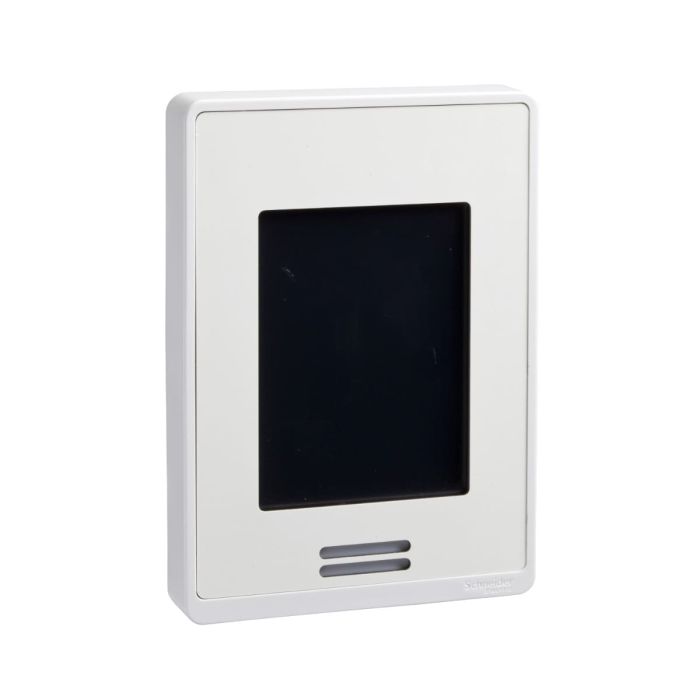

Low-Voltage Fan Coil Room Controller & Zone Controller: BACnet MS/TP, RH sensor & control, White Case/Fascia
Input type:
2 x dry contact
5 x analog
Sensor type:
10 kOhm T2 NTC thermistor temperature
Space RH sensor humidity
Bulk polymer humidity
Output type:
5 x relay output
4 x universal
SE8300 Series room controllers are used for Low Voltage Fan Coil Unit control. The room controllers rated supply voltage range is 24 to 28V AC at 50 or 60Hz +/-15%. The rated current is 4A. The device consumption is up to 12VA. The room controller is colored white and is equiped with a communication port that uses BACnet MS/TP protocol and a PIR sensor. Its Room and Outdoor Air Temperature Display Range is between -40 and 50 oC. The measurement accuracy is +/- 0.5%. The temperature setting range is 12 to 37.5oC for cooling and 4.5 to 32 oC for heating. The room controller is equiped with 2 digital inputs, 5 analog inputs (5 to 10V), 4 analog outputs, and 5 digital outputs. The analog output voltage is 0 to 10V DC at < 5mA into > 2 kOhm resistance. The digital output rating is 28V AC 50 or 60 Hz, 0.3A, 1.5A inrush current. The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B, ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2. The product follows the directives: 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive. The ambient air temperature for operation is between 0 and 50oC. The relative humidity for operating or storage is between 0 and 75% non condensing. The humidity reading range is 10 to 90% RH non-condensing.
Specifications:
Main | |
Device application | Low voltage fan coil |
Net weight | 340 g |
Product or component type | Room controller |
Product name | SE8000 Series |
Device short name | SE8300 |
Height | 120 mm |
AWG gauge | AWG 24...AWG 18 |
targeted region | North America. |
Directives | 2014/30/EU - electromagnetic compatibility |
2014/35/EU - low voltage directive | |
2014/53/EU - radio equipment directive | |
Humidity measurement drift | Less than 1 % yearly |
[In] rated current | 4:00 AM |
Width | 86 mm |
Temperature resolution | 0.1 °C |
Market segment | Lodging/hotel |
Small commercial | |
Buildings | |
Healthcare | |
Non-critical buildings | |
Office | |
Residential | |
School | |
Housing colour | White |
Ambient air temperature for storage | -30…50 °C |
Depth | 25 mm |
Ambient air temperature for operation | 0…50 °C |
Measurement accuracy | Temperature: +/- 0.5 °C, |
Humidity: +/- 5 %, 20...80 % RH (non-condensing) | |
Humidity: +/- 10 %, 10...20 % (non-condensing) | |
Humidity: +/- 10 %, 80...90 % (non-condensing) | |
Information displayed | Temperature: - 40...122 °F |
Network frequency | 50 Hz |
60 Hz | |
Communication port protocol | BACnet MS/TP |
Modbus RTU | |
Input voltage | 0...10 V DC |
Temperature setting range | 12…37.5 °C cooling |
4.5…32 °C heating | |
Calibration certificate | 1 pt |
Output voltage | 24 V AC for relay output |
0...10 V DC for analog output | |
Relative humidity | 0…95 % |
Output current | 1 A relay output |
3 A relay output (inrush) | |
0.3 A universal output | |
1.5 A universal output (inrush) | |
Input type | 2 x dry contact |
5 x analog | |
Sensor type | 10 kOhm T2 NTC thermistor temperature |
Space RH sensor humidity | |
Bulk polymer humidity | |
Output type | 5 xrelay output |
4 xuniversal | |
[Us] rated supply voltage | 24 V AC 50/60 Hz +/- 15 % |
Standards | EN/IEC 60730-1 |
FCC part 15 Subpart B | |
ICES-003 | |
ETSI EN 300 328 | |
ETSI EN 301 489-1:v1.9.2 | |
FCC part 15 Subpart C | |
UL 60730-2-9 | |
ETSI EN 301 489-17:v2.2.1, 2012 | |
Humidity setting range | 30…95 % |
Range | EcoStruxure Building Expert |
Economizer | Yes |
Humidity control | Yes |
PIR cover | No |
Scheduling | No |
Complementary | |
Surface treatment | Untreated |
Surface finish | Matt |
Function available | Fan control |
HVAC control | |
Available with CO2/RH/T | |
Brightness sensor | |
Changes can be made directly over display | |
Code lock function | |
Easily configurable | |
Firmware update by USB |
| Weight | 0.340000 |
|---|---|
| Brand | Schneider Electric |
| Model | SE8350U0B11 |
| Depth [cm] | 2.5 |
| Width [cm] | 8.6 |
| Height [cm] | 12 |
| Range | EcoStruxure Building Expert |
| [In] Rated Current | 4A |
