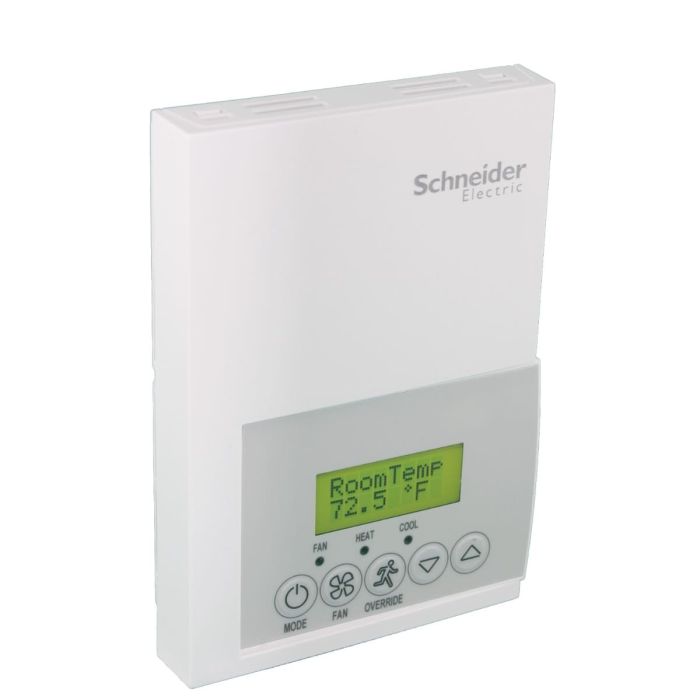

Low-Voltage Fan Coil Room Controller: Stand Alone, RH sensor & control, Analog 0-10 Vdc, Commercial/Override
Measurement accuracy
Humidity: +/- 5 %, 20...80 % RH (non-condensing)
Temperature: +/- 0.9 °F, (at 70 °F typically calibrated)
Temperature setting range
40…90 °F heating
0.9 °F per step
54…100 °F cooling
Humidity setting range
Humidification: 10…90 %
Dehumidification: 15…95 %
Specifications:
Main | |
Device application | Low voltage fan coil |
Net weight | 0.34 kg |
Product or component type | Room controller |
Product name | SE7000 Series |
Device short name | SE7300 |
Height | 124.97 mm |
AWG gauge | AWG 22...AWG 18 |
Directives | 89/336/EEC - electromagnetic compatibility |
Width | 86.87 mm |
Market segment | Small commercial |
Ambient air temperature for storage | -22…122 °F |
Depth | 29.97 mm |
Ambient air temperature for operation | 32…122 °F |
Measurement accuracy | Humidity: +/- 5 %, 20...80 % RH (non-condensing) |
Temperature: +/- 0.9 °F, (at 70 °F typically calibrated) | |
Product certifications | CE |
C-Tick conforming to AS/NZS CISPR 22 | |
FCC conforming to CFR 47 part 15 class A | |
UL listed file E27734 CCN XPAX | |
UL listed file E27734 CCN XPAX7 | |
Information displayed | Temperature: - 40...122 °F |
Network frequency | 60 Hz |
50 Hz | |
Communication port protocol | Standalone (network ready) |
Temperature setting range | 40…90 °F heating |
0.9 °F per step | |
54…100 °F cooling | |
Humidity setting range | Humidification: 10…90 % |
Dehumidification: 15…95 % | |
Calibration certificate | 1 pt |
Output type | 2 xuniversal |
1 xanalog | |
Output voltage | 0...10 V DC for universal output |
30 V AC for universal output | |
Input type | 1.0 x dry contact |
Output current | <= 5 mA universal output |
Standards | CSA C22.2 No 24 |
FCC part 15 Subpart B | |
ICES-003 | |
UL 873 | |
Relative humidity | 0…95 % RH, non-condensing |
[Us] rated supply voltage | 10...30 V AC 50/60 Hz |
Sensor type | Single point calibrated bulk polymer RH sensor humidity |
10 kOhm T2 NTC thermistor temperature | |
Range | EcoStruxure Building Expert |
Economizer | No |
Humidity control | Yes |
PIR cover | No |
Scheduling | No |
Complementary | |
Number of steps | 3 |
device presentation | Without cover |
Rated operational power in VA | 2 VA |
internal resistance | >= 2 kOhm |
Connections - terminals | Screw terminal |
Range compatibility | EcoStruxure Building Expert communication card |
EcoStruxure Building Expert sensor | |
EcoStruxure Building Expert temperature sensor | |
EcoStruxure Building Expert relay | |
EcoStruxure Building Expert sensor coverplate | |
Environment | |
Electrical insulation class | Class II |
| Weight | 0.340000 |
|---|---|
| Brand | Schneider Electric |
| Model | SE7350F5045 |
| Depth [cm] | 2.997 |
| Width [cm] | 8.687 |
| Height [cm] | 12.497 |
| Range | EcoStruxure Building Expert |
