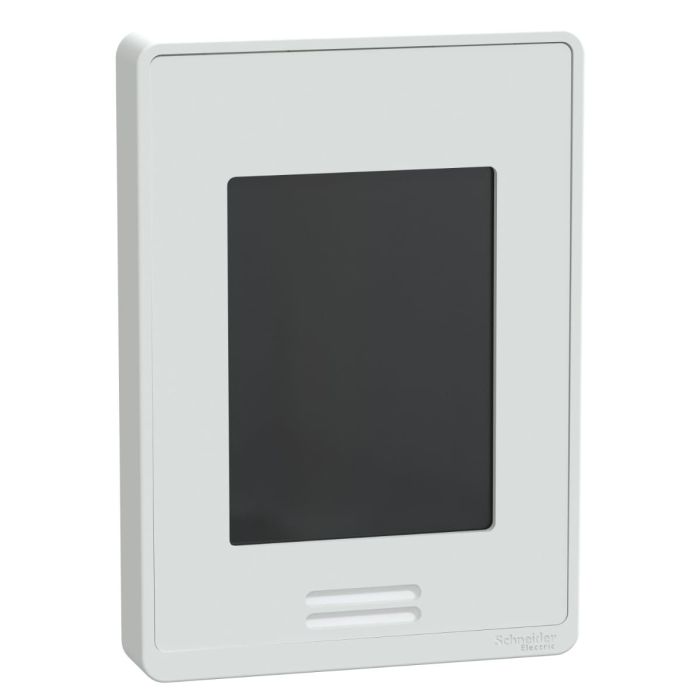

Line-Voltage Fan Coil Room Controller: BACnet MS/TP, RH sensor & control, White Case/Fascia
Input type
2 x dry contact
5 x analog
Sensor type
10 kOhm T2 NTC thermistor temperature
Space RH sensor humidity
Bulk polymer humidity
Output type
5 x relay output
4 x universal
SER8300 Series room controllers are used for Line Voltage Fan Coil Unit control. The room controllers rated supply voltage is 7V DC at 2.4watts. The room controller is colored white and is equiped with a communication port that uses BACnet MS/TP protocol. Its Room and Outdoor Air Temperature Display Range is between -40 and 50 oC. The measurement accuracy is +/- 0.5%. The temperature setting range is 12 to 37.5oC for cooling and 4.5 to 32 oC for heating. The room controller is equiped with 3 digital inputs. The product follows the following standards: IEC 61326-1: 2005, FCC part 15 subpart C, RSS 210 issue 8, FCC part 15 subpart B, ICES-003, EN 60950-1: 2006/A2, EN 60950-1: 2013, ETSI EN 301 489-1: v1.9.2. The product follows the directives: 2014/30/EU - electromagnetic compatibility, 2014/35/EU - low voltage directive, 2014/53/EU - radio equipment directive. The ambient air temperature for operation is between 0 and 50oC. The relative humidity for operating or storage is between 0 and 75% non condensing. The humidity reading range is 10 to 90% RH non-condensing.
Specifications:
Main | |
Device application | Line voltage fan coil |
Net weight | 340 g |
Product or component type | Room controller |
Product name | SE8000 Series |
Device short name | SER8300 |
Height | 120 mm |
AWG gauge | AWG 24...AWG 18 |
targeted region | North America. |
Directives | 2014/30/EU - electromagnetic compatibility |
2014/35/EU - low voltage directive | |
2014/53/EU - radio equipment directive | |
Humidity measurement drift | Less than 1 % yearly |
[In] rated current | 4:00 AM |
Width | 86 mm |
Temperature resolution | 0.1 °C |
Market segment | Lodging/hotel |
Small commercial | |
Buildings | |
Healthcare | |
Non-critical buildings | |
Office | |
Residential | |
School | |
Housing colour | White |
Ambient air temperature for storage | -30…50 °C |
Depth | 25 mm |
Ambient air temperature for operation | 0…50 °C |
Measurement accuracy | Temperature: +/- 0.5 °C, |
Humidity: +/- 5 %, 20...80 % RH (non-condensing) | |
Humidity: +/- 10 %, 10...20 % (non-condensing) | |
Humidity: +/- 10 %, 80...90 % (non-condensing) | |
Information displayed | Temperature: - 40...122 °F |
Network frequency | 50 Hz |
60 Hz | |
Communication port protocol | BACnet MS/TP |
Modbus RTU | |
Input voltage | 0...10 V DC |
Temperature setting range | 12…37.5 °C cooling |
4.5…32 °C heating | |
Calibration certificate | 1 pt |
Output voltage | 24 V AC for relay output |
0...10 V DC for analog output | |
Relative humidity | 0…95 % |
Output current | 1 A relay output |
Input type | 2 x dry contact |
5 x analog | |
Sensor type | 10 kOhm T2 NTC thermistor temperature |
Space RH sensor humidity | |
Bulk polymer humidity | |
Output type | 5 xrelay output |
4 xuniversal | |
[Us] rated supply voltage | 7 V DC 50/60 Hz +/- 10 % |
Standards | EN/IEC 60730-1 |
FCC part 15 Subpart B | |
ICES-003 | |
ETSI EN 300 328 | |
ETSI EN 301 489-1:v1.9.2 | |
FCC part 15 Subpart C | |
UL 60730-2-9 | |
ETSI EN 301 489-17:v2.2.1, 2012 | |
Humidity setting range | 30…95 % |
Range | EcoStruxure Building Expert |
Economizer | Yes |
Humidity control | Yes |
PIR cover | No |
Scheduling | No |
Complementary | |
Surface treatment | Untreated |
Surface finish | Matt |
Function available | Fan control |
HVAC control | |
Available with CO2/RH/T | |
Brightness sensor | |
Changes can be made directly over display | |
Code lock function | |
Easily configurable | |
Firmware update by USB |
| Weight | 0.340000 |
|---|---|
| Brand | Schneider Electric |
| Model | SER8350A0B11 |
| Depth [cm] | 2.5 |
| Width [cm] | 8.6 |
| Height [cm] | 12 |
| Range | EcoStruxure Building Expert |
| [In] Rated Current | 4A |
