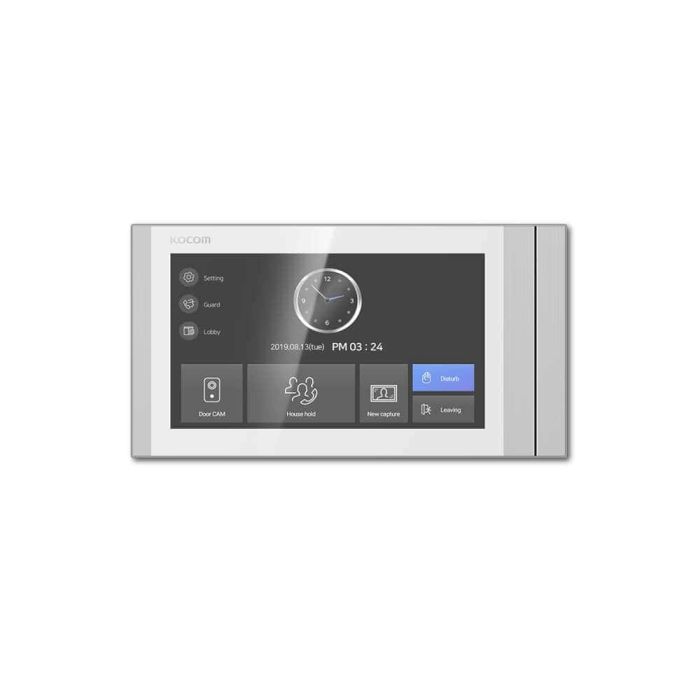

KOCOM KCV-T701SM Videophone, 7" Digital LCD Color Monitor White
Selective Calling Available, Either One or All Indoors
Supports All Types of CCTV(AHD, CVI, TVI, and even CVBS)
Max 100m CCTV Connection Available by UTP cable
Finest Outline of Graphic User Interface Homescreen
Emotional Frame for Space
7 INCH DIGITAL LCD COLOR MONITOR
High Resolution Full Touch screen AHD CCTV Compatible
Bigger & Clear image with high-resolution 7 inch screen!
You can have vibrant experience of the visual immersion through the product.
Metal Hairline Bezel Design
Ennoble the living space by balanced beauty by luxurious
and subtly glossy metallic hairline design of the product with tempered glass.
Intuitive Usability Experience
Capacitive Touch Screen
Convenient and easy for operation by using full touch GUI
Selective Calling Available, Either One or All Indoors
Guarantee your convenient life by special function to make a seletive call to one of devices.
Supports All Types of CCTV
(AHD, CVI, TVI, and even CVBS)
Various Connectable Products
KC-MC30M (2M Pixel)
KC-MC24(D1)
KC-Q81P(D1)
KC-MC20(D1)
KC-S81M(D1)
Max 100m CCTV Connection Available by UTP cable
Remark : Coaxial Cables are Popular by Other Models
Finest Outline of Graphic User Interface Homescreen
Upgraded into new intuitive GUI application with more diverse functions and elegant design.
Emotional Frame for Space
The design is harmoniously arranged in various interior circumstances and expresses sensual atmosphere.
Specifications
| Model No. | KCV-T701SM AC TYPE / KCV-T701SM DC TYPE |
| Power Source | 100-240V~, 50/60Hz / DC 14V-2A or DC 15V-2A |
| Power Comsumption | 2.65W(±20%)(Stand by), 9.1W(±20%)(In load) |
| LCD | 7 inch LCD |
| Maximum wiring distance | Door camera to last VDP : 100m (The IN-OUT wiring must be done) |
| CCTV type | Analog HD type ( TVI, CVI, AHD) , (720p , 1080p) |
| Mount Type | Surface mount |
| Operating Temperature | 0℃ ~ +40℃ |
| Dimesion | 218(W) x 119(H) x 22(D) mm / 218(W) x 119(H) x 18(D) mm |
| Weight | 1.000000 |
|---|---|
| Brand | KOCOM |
| Model | KCV-T701SM |
| Color | White |
| Country of Manufacture | South Korea |
| Technology | Visual Intercom |
