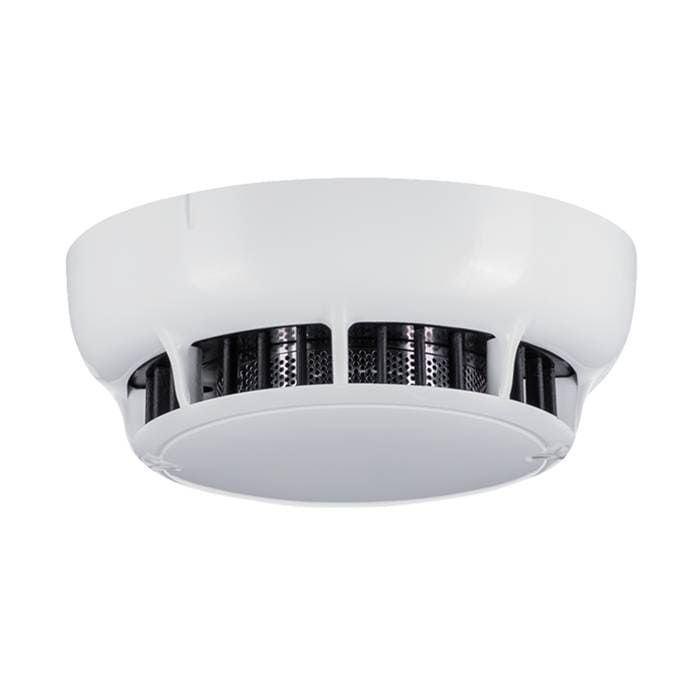

Conventional Optical Smoke Detector, Honeywell
Operating Type: Optical
Detection Level: Device Type A
Detection Standard: EN54-7
Starting Time: 15 seconds
You May Also Like:
5" Metal Ceiling Loudspeaker, HoneywellSpecial Price EGP 600 Regular Price EGP 749
System 2 CO line, 8 Extension, PABXSpecial Price EGP 1,999 Regular Price EGP 2,625
Standalone Smoke Alarm, DahuaSpecial Price EGP 719 Regular Price EGP 918
System 2 CO line, 16 Extension, PABXSpecial Price EGP 3,250 Regular Price EGP 4,750
Conventional Fire Alarm Panel 8 Zone, HoneywellSpecial Price EGP 12,050 Regular Price EGP 15,650
System 4 CO Line,16 Extension, PABXSpecial Price EGP 3,450 Regular Price EGP 5,375
Conventional Fire Alarm Sounder TFS-3191R, HoneywellSpecial Price EGP 880 Regular Price EGP 1,100
Conventional Heat Detector, HoneywellSpecial Price EGP 600 Regular Price EGP 750
Conventional Manual Call Point Resettable, HoneywellSpecial Price EGP 760 Regular Price EGP 950
OSD-3230 CONVENTIONAL OPTICAL SMOKE DETECTOR
General Specifications
The OSD-3230 Conventional Optical Smoke Detector features a uniquely engineered smoke chamber, perfected through extensive fluid mechanics and optical refraction testing. Fire detection is achieved using advanced optical sensing technology. The detector incorporates sophisticated algorithms designed to minimize false alarms and provide pollution warnings. The smoke chamber is easily removable for cleaning, especially useful in environments with excessive dust.
Certified to EN54-7 standards
Detects smoke particles using the Light Scatter principle and triggers an alarm.
Equipped with two LED indicators offering 360° visibility.
LEDs display two distinct colors (Blue/Red) to clearly indicate alarm and fault conditions.
A metallic cage and specialized circuit protection enhance resistance to electromagnetic interference (EMC) and low voltage disturbances (LVD), reducing false alarms.
Advanced software algorithms filter out sudden dust, smoke, and other external factors that could cause false alarms.
The metallic cage prevents intrusion of insects, flies, and foreign objects into the sensing chamber.
Incorporates a pollution detection algorithm that continuously monitors contamination levels and alerts the user via both the detector and panel display, ensuring stable and accurate operation.
Features an insert-type contact structure to eliminate contact failure issues.
Supports parallel indicator connection for external alarm signaling.
The smoke chamber is easy to clean and maintain.
Elegant and aesthetic design that complements any environment.
Compatible with all conventional control panels.
Specifications:
Operating Type: Optical
Detection Level: Device Type A
Detection Standard: EN54-7
Power Supply: 18V (min) – 30V (max)
Average Current Consumption: 30µA (@24V)
Alarm Consumption: 50mA (@24V, limited with 470Ω)
Indicator Current: 10mA (@24V, limited with 2.2kΩ)
Starting Time: 15 seconds
Dimensions: Ø110mm, Height 42mm
Body Material: ABS Plastic – White
Cable Type: 0.4mm² – 1.5mm²
Operating Temperature: -10°C to +55°C
Humidity: Up to 95% RH
Protection Class: IP30
| Weight | 1.500000 |
|---|---|
| Brand | Honeywell |
| Model | OSD-3230 |
| Color | White |
| Material | Plastic (ABS) |
| VOX Audio Detection | No |
