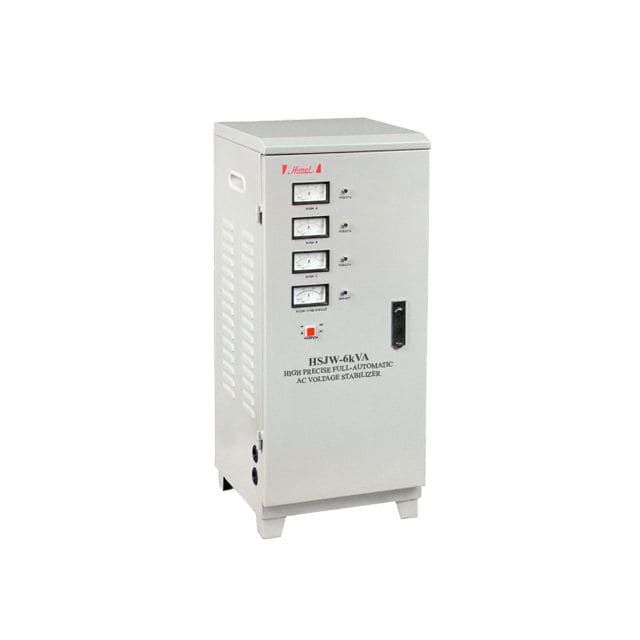

Himel 6 kVA 3 Phase Voltage Stabilizer, HSJW, Servo Motor type, Cabinet Shape, Dial Meter Display, 380 V Output
Range of product: HSJW
Technology type: Servo motor
Rated power in VA 6 kVA
Output voltage: 380 V AC +/- 4 %
Input voltage limits 260...430 V
Rated power in VA 6 kVA
Minimum insulating resistance 5 MOhm
Maximum [In] rated current 9.1 A
Efficiency 92 %
Input voltage limits 260...430 V
Optional feature: Bypass
Protection type:
Overvoltage for output
Undervoltage protection optional for input
Undervoltage protection optional for output
Overload protection optional
Phase failure optional
Temperature rise protection optional
Time delay optional
Inrush surge protection optional
Signalling function Dial pointer indication
Output voltage 380 V AC +/- 4 %
Network frequency 50/60 Hz
[Uimp] rated impulse withstand voltage 1.5 kV per minute
Mounting support Floor-standing
Ambient air temperature for operation -5…40 °C
Relative humidity 0…90 %
Operating altitude 0...2000 m
Standards
EN 61000-6-2
EN 61000-6-4
EN 61558-1
Product certifications CE
| Weight | 30.000000 |
|---|---|
| Brand | Himel |
| Model | HSJW6G |
| Country of Manufacture | China |
| Range | HSJW |
| Rated Power in VA | 6kVA |
| Technology | Servo Motor |
| Input Voltage | 260...430 V |
| Output Voltage | 380 V AC +/- 4% |
| Mounting Mode | Floor Standing |
