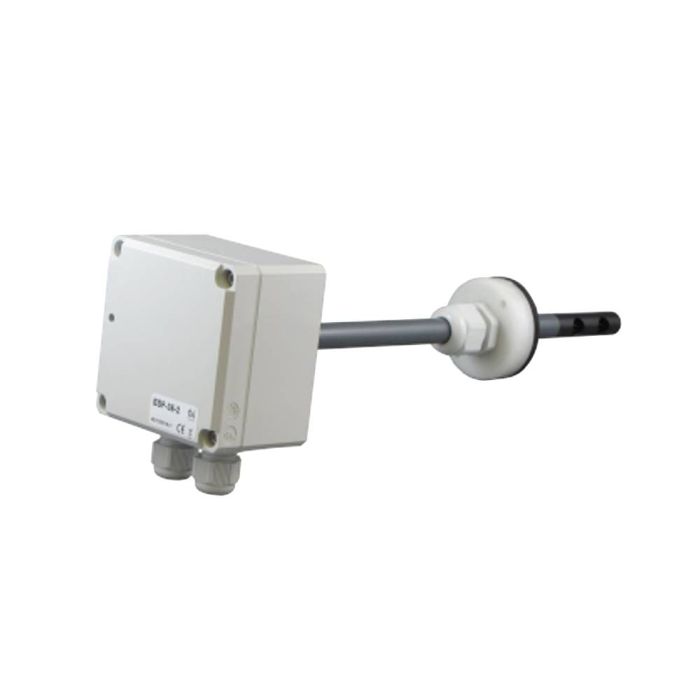

ESF Series – Duct Airflow Transmitter

The ESF duct airflow transmitter registers the airflow speed according to a thermal principle based on the fact that the cooling action of air increases with airspeed. The action is measured and converted to a 4 – 20mA or a 0 – 10 V signal corresponding to airflow speeds from 0 – 8 m/s (0 – 1575 ft/min) or 0 – 16 m/s (0 – 3150 ft/min).

Specifications:

Converts airspeed into a 4 – 20mA or a 0 – 10 VDC signal
Linear output signal
Made with corrosion resistant material
Fully electronic registration of airflow speed
AC or DC voltage supply
Compensates for changes of air temperature
Telescopic sensor facilitates installation
Temperature output signal 0 – 10 VDC
Fuse protected
