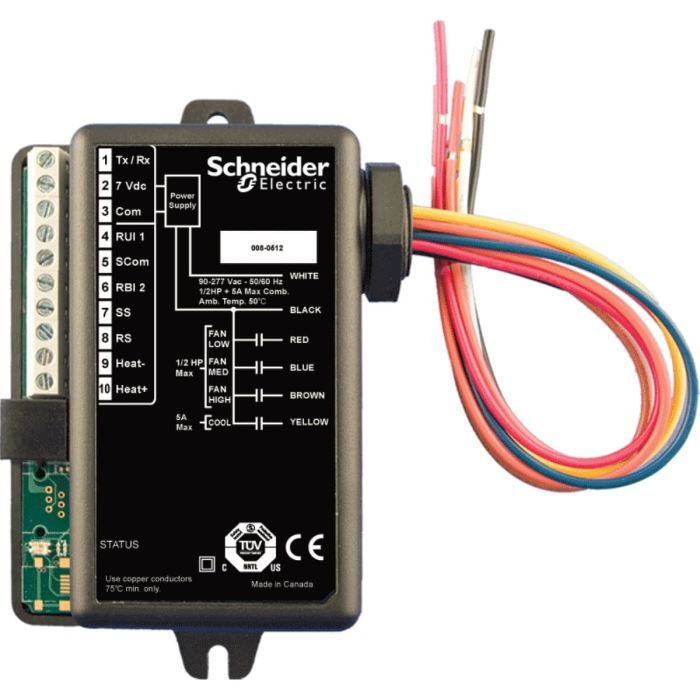

EBE - relay pack - for line voltage FCU - 5 relay & 1 occupancy output - 4 input
Number of outputs: 3 fan relay, 2 valve relay, 1 digital
Relay packs SC3514E5045 are used in conjunction with the 8000 and 7000 series SER8300 and SER7300 Room Controllers for Low or LineVoltage 2 or 4 pipes Fan Coil Unit applications. The relay packs are specifically used for other applications such as reheat valves, fan coil, chiller, or heat or cool valve control. The relays rated supply voltage is 7V DC +/- 10% or 90 to 277V AC at 50 or 60Hz. The maximum output current for cool valve is 5A, for heat valve 10A, and for fan relay (< 0.5 hp) is 13A at < 277V AC The load type can be either Motor or Fan or Valve at a voltage of 90 to 277V AC at 50 or 60 Hz. The relay pack has 3 outputs for fan relays and 2 outputs for valve relays. It has also 4 inputs 1 for each of the following types: universal input, binary input, temperature sensor input for monitoring, and temperature sensor input for control. The relay pack has an occupancy output. The relay package follows the following directives: 2004/108/EC - electromagnetic compatibility, 2006/95/EC low voltage directive, and 1999/5/EC - R&TTE directive. The relay pack is certified for the following standards: FCC part 15 subpart B, ICES-003, UL 873, CSA C22.2 No 24, IEC 61326-1 - 2005, EN 60730-2-9, UL 61010-1 - ed. 3, IEC 61010-1 - ed. 3, CSC 61010-1 - ed. 3. The ambient air temperature for operation is between 32 and 122 oF. The ambient air temperature for storage is between -22 and 122 oF. The relative humidity for operating or storage is between 0 and 95% non condensing.
Specifications:
Main | |
Network frequency | 60 Hz |
50 Hz | |
Device application | Low voltage fan coil |
Line voltage fan coil | |
Net weight | 0.34 kg |
Directives | 2006/95/EC - low voltage directive |
1999/5/EC - R&TTE directive | |
2004/108/EC - electromagnetic compatibility | |
Width | 80.01 mm |
Product or component type | Relay pack |
Device short name | SC3000 |
Height | 121.9 mm |
Ambient air temperature for storage | -22…122 °F |
Depth | 33.02 mm |
Ambient air temperature for operation | 32…122 °F |
Number of outputs | 3 fan relay |
2 valve relay | |
1 digital | |
Standards | IEC 61326-1:2005 |
FCC part 15 Subpart B | |
ICES-003 | |
UL 873 | |
EN 60730-2-9 | |
UL 61010-1:ed. 3 | |
IEC 61010-1:ed. 3 | |
CSC 61010-1:ed. 3 | |
CSA C22.2 No 24 | |
Range | EcoStruxure Building Expert |
Complementary | |
Product specific application | Control of heat/cool valve |
Control of fan coil | |
Control of reheat valve | |
Control of chiller | |
3-stage speed | |
Maximum output current | For fan relay: 13 A at <= 277 V AC and 0.5 hp, brown/blue/red wire |
For cool valve: 5 A at <= 277 V AC, yellow wire | |
For heat valve: 10 A at <= 277 V AC, orange wire | |
Range compatibility | EcoStruxure Building Expert communication card |
EcoStruxure Building Expert SE7000 Series SER7300 room controller | |
EcoStruxure Building Expert SE8000 Series SER8300 room controller | |
Load type | Motor - 90...277 V AC at 50/60 Hz |
Fan - 90...277 V AC at 50/60 Hz | |
Valve - 90...277 V AC at 50/60 Hz | |
Connections - terminals | Screw terminal AWG 22...AWG 14 |
Sensor type | Single point calibrated bulk polymer RH sensor |
Measurement accuracy | Humidity: 10 %, 10...20 % (non-condensing RH) |
Humidity: 20 %, 20...80 % (non-condensing RH) | |
Humidity: 10 %, 80...90 % (non-condensing RH) |
| Weight | 0.350000 |
|---|---|
| Brand | Schneider Electric |
| Model | SC3514E5045 |
| Depth [cm] | 3.302 |
| Width [cm] | 8.001 |
| Height [cm] | 12.19 |
| Range | EcoStruxure Building Expert |
