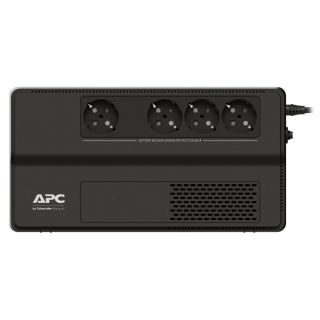

Easy-UPS BVS 500VA Offline/ Back ups, AVR, prese Schuko
Capacity: 500VA / 300W
Power Factor: 0.5 : 0.6
Transfer time: 6 ms typical : 10 ms maximum
Output: 4 outlet Schuko CEE 7
Ensure your critical systems and sensitive electronics remain powered and protected with the BVS500I-GR Uninterruptible Power Supply (UPS). Designed for both home and business use, this reliable UPS ensures that your devices stay operational even during power disruptions.
Key Features:
Robust Power Protection: The BVS500I-GR offers robust protection against power fluctuations, surges, sags, and outages, safeguarding your valuable equipment and data.
500VA Capacity: With a capacity of 500VA, this UPS can power multiple devices, including computers, routers, modems, and more.
Automatic Voltage Regulation (AVR): AVR technology stabilizes voltage levels, protecting your devices from damaging voltage fluctuations.
Energy Efficiency: Designed with energy efficiency in mind, the BVS500I-GR reduces power consumption, helping you save on energy costs.
Battery Management: The UPS features intelligent battery management to extend battery life and optimize performance.
Multiple Outlets: It offers multiple outlets to connect various devices simultaneously, ensuring uninterrupted power to your essential equipment.
Specifications:
Main | |
Product or component type | Uninterruptible power supply (UPS) |
Battery type | Lead-acid battery |
Topology | Line interactive |
Quantity per set | Set of 1 |
Reset | Automatic reset |
Range of product | Easy UPS 1Ph BVS Series |
Complementary | |
Type of installation | Indoor |
Surge Energy | 156 J |
Type of signal | Stepped approximation to a sinewave |
Protection device type | Surge protection device (SPD) |
Miniature circuit breaker (MCB) | |
Fuse | |
Input voltage | 230 V AC |
Output voltage | 230 V |
IP degree of protection | IP20 |
Transfer time | 6 ms typical : 10 ms maximum |
Network frequency | 45...65 Hz |
Power range | 500 VA |
300 W | |
Electrical connection | Input: 1 inlet Schuko CEE 7/P |
Output: 4 outlet Schuko CEE 7 | |
Local signalling | Alarm, distinctive for low battery |
Alarm, continuous or intermittent tone for overload | |
LED for battery status | |
Number of batteries | 1 |
Charging time | 8 h |
Battery voltage | 12 V |
Battery capacity | 4.5 Ah |
Battery life | 5 year(s) |
Net weight | 3.9 kg |
Height | 92.5 mm |
Width | 160.5 mm |
Depth | 305 mm |
Environment | |
Relative humidity | 0…90 %, non-condensing |
Operating altitude | 0...6561 ft |
Ambient air temperature for operation | 0…40 °C |
Standards | EN/IEC 62040-1:2019/A11:2021 |
EN/IEC 62040-2:2006/AC:2006 | |
EN/IEC 62040-2:2018 | |
product certifications | CE |
Physical | |
mounting support | Wall |
Floor |
| Weight | 3.900000 |
|---|---|
| Brand | Schneider Electric |
| Model | BVS500I-GR |
| Color | Black |
| Depth [cm] | 30.5 |
| Width [cm] | 16.05 |
| Height [cm] | 9.25 |
| Range | BVS |
| Rated Power in VA | 500 VA |
| Rated Power In W | 300 Watt |
| Power Factor | 0.5 : 0.6 |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Input Voltage | 230 V |
| Output Voltage | 230 V |
