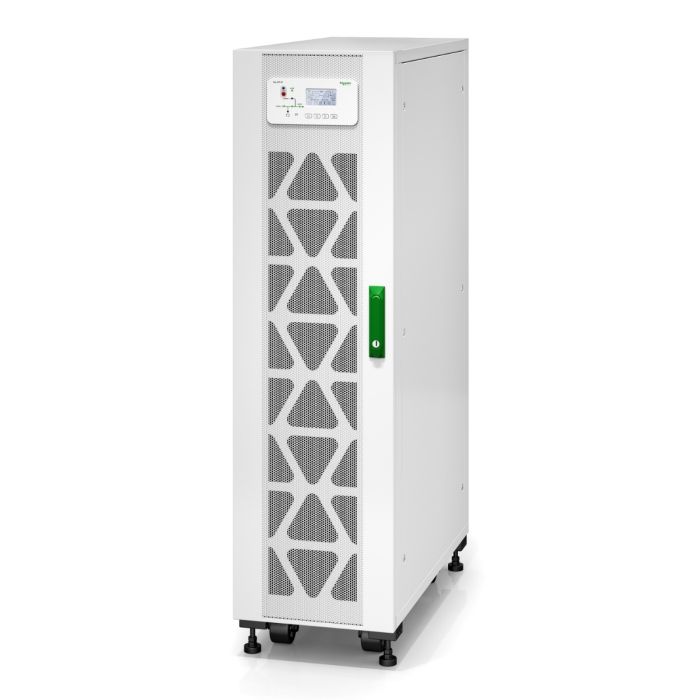

Easy UPS 3S 20 kVA 400V UPS, 2 internal 7Ah modular battery strings, expandable to 3
Capacity: 20VA
Main Input Voltage: 400V 3 phases
Main Output Voltage: 400V 3 phases
Easy-to-install, easy-to-operate, easy-to-maintain, and easy-to-service 20 kVA, 400V 3-phase UPS. With advanced product features, competitive specifications, and robust electrical design, the Easy UPS 3S UPS makes business continuity easy for small and medium data centers and electrical rooms. Includes dust filter and conformance-coated boards for harsh environments, and 2 internal 7Ah modular battery strings, expandable to 3 strings for extended runtime.
Specifications:
Main | |
Main Input Voltage | 400 V 3 phases |
product or component type | Uninterruptible power supply (UPS) |
Other Input Voltage | 380 V |
415 V | |
Main Output Voltage | 400 V 3 phases |
Other Output Voltage | 380 V |
415 V | |
Rated power in W | 20 kW |
Rated power in VA | 20 kVA |
Provided equipment | Dust filter |
Installation guide | |
Batteries & Runtime | |
Battery type | VRLA |
Battery voltage | 240 V |
Maximum short-circuit current | 10 kA |
Number of battery filled slots | 2 |
Number of battery free slots | 1 |
Physical | |
Colour | White (RAL 9003) |
Height | 140 cm |
Width | 38 cm |
Depth | 92.8 cm |
net weight | 446 kg |
USB compatible | Yes |
Input | |
Maximum input current | 37 A |
Input harmonic distortion | Less than 3 % for full load |
Load power factor | 0.9 leading to 0.9 lagging |
Input Power Factor at Full Load | 0.99 |
Input voltage limits | 304...477 V |
Network frequency | 45...65 Hz |
Output | |
Maximum configurable power in VA | 20 kVA |
Maximum configurable power in W | 20 kW |
Output frequency | 50 Hz sync to mains |
60 Hz sync to mains | |
Harmonic distortion | Less than 3 % |
Output harmonic distortion | < 3% linear load |
Output voltage tolerance | +/- 1.5 % |
UPS type | Double conversion online |
Additional information | UPS weight does not include battery weight. |
Conformance | |
Product certifications | CE |
EAC | |
RCM | |
Environmental | |
Ambient air temperature for operation | 0…40 °C |
Relative humidity | 0…95 % non-condensing |
Operating altitude | 0...3333 ft |
ambient air temperature for storage | -15…40 °C |
Storage Relative Humidity | 0…95 % non-condensing |
Storage altitude | 0.0000000000…15240.0000000000 m |
Acoustic level | 60 dBA |
heat dissipation | 900 W |
IP degree of protection | IP20 |
| Weight | 446.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | E3SUPS20KHB1 |
| Depth [cm] | 9.28 |
| Width [cm] | 3.8 |
| Height [cm] | 14 |
| Rated Power in VA | 20kVA |
| Rated Power In W | 20 kW |
