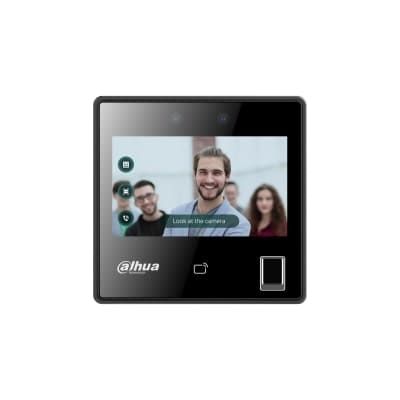

Face Recognition Access Controller, Dahua
4.3 inch glass touch screen with a resolution of 480 × 272.
2-MP wide-angle dual-lens camera with IR illumination and DWDR.
Multiple unlock methods including fingerprint, face, IC card and pass word. You can also combine them to create your own personal unlock methods.
Supports mask detection.
4.3 inch glass touch screen with a resolution of 480 × 272.
2-MP wide-angle dual-lens camera with IR illumination and DWDR.
Multiple unlock methods including fingerprint, face, IC card and pass word. You can also combine them to create your own personal unlock methods.
Supports mask detection.
Supports visitor QR code with DSS Pro Platform.
Recognizes faces 0.3 m to 1.5 m away (0.98 ft-4.92 ft).
Supports 3,000 users, 3,000 faces, 3,000 passwords, 5,000 cards, 5,000 fingerprints, 50 administrators, and 300,000 records.
Liveness detection has a face recognition accuracy rate of 99.9% and the 1:N comparison time is 0.2 s per person.
Supports making video calls and using the app to receive alarm notifi cations, remotely unlock doors and to perform other tasks.
Supports customization of voice prompts.
Specifications:
| System | |
| Main Processor | Embedded Processor |
| Network Protocol | IPv4; RTSP; RTP; TCP; UDP; SIP; P2P |
| OSDP Protocol | Yes |
| Interoperability | ONVIF; CGI |
| SDK and API | Yes |
| Basic | |
| Product Type | Standalone |
| Display Screen | 4.3" LCD |
| Screen Type | Capacitive Touchscreen |
| Screen Resolution | 480 (H) × 272 (V) |
| Camera | 2-MP CMOS HD dual-lens camera |
| WDR | DWDR |
| Light Compensation | Auto IR |
| Voice Prompt | Yes |
| Casing | PC + ABS |
| Function | |
| Unlock Mode | Password, fingerprint, card, remote, face and combination unlock |
| Card Type | IC card |
| Period List | 128 periods |
| Holiday Period | 128 periods |
| Network Update | Yes |
| First User Unlock | Yes |
| Remote Verification | Yes |
| Restricted List/Trusted List | Yes |
| Wi-Fi | Yes |
| Wireless Standard | IEEE802.11b/802.11g/802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Peripheral Card Reader | 1 × RS–485 card reader; 1 × Wiegand card reader |
| Multi-user Authentication | Yes |
| Real-time Monitoring | Yes |
| Web Configuration | Yes |
| Auto Registration | Yes |
| Performance | |
| Card Reading Distance | 0 cm–3 cm (0"–1.18") |
| Face Recognition Height Range | 1.1 m– 2.0 m (3.61 ft–6.56 ft) |
| Face Recognition Distance | 0.3 m–1.5 m (0.98 ft–4.92 ft) |
| Face Recognition Accuracy | 99.90% |
| Face Recognition Time | 0.2 s |
| Fingerprint Verification Mode | 1:N |
| Fingerprint Comparison Time | 1.5 s |
| Fingerprint Recognition Time | 0.5 s |
| Read Speed (QR Code ) | 500 ms |
| Code Type | Paper; Electronic |
| User | |
| User (Card) Type | Normal user; VIP users; patrol users; guest user; blocklist user; other user |
| Capacity | |
| User Capacity | 3,000 |
| Face Image Capacity | 3,000 |
| Card Capacity | 5,000 |
| Fingerprint Capacity | 5,000 |
| Password Capacity | 3,000 |
| Record Capacity | 300,000 |
| Port | |
| RS-485 | 1 |
| Wiegand | 1 |
| USB | 1 × USB 2.0 |
| Network Port | 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port |
| Exit Button | 1 |
| Lock Control | 1 |
| Door Status Detection | 1 |
| Alarm | |
| Anti-pass Back | Yes |
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
| Intrusion | Yes |
| Illegal Card Exceeding Threshold | Yes |
| Duress Fingerprint | Yes |
| General | |
| Power Adapter | Standard |
| Power Supply | 12 VDC, 1.5 A |
| Power Consumption | ≤18 W |
| Product Dimensions | 115.0 mm × 118.0 mm × 27.1 mm (4.53" × 4.65" × 1.07") (H × W × D) |
| Packaging Dimensions | 190 mm × 179 mm × 127 mm (7.48" × 4.65" × 5.00") (L × W × H, protection box) |
| Operating Temperature | –10 °C to +40 °C (+14 °F to +104 °F) |
| Operating Humidity | 0%–90% (RH), non-condensing |
| Operating Environment | Indoor |
| Net Weight | 250 g (0.55 lb) |
| Gross Weight | 400 g (0.88 lb) |
| Accessory | Wall mount bracket (included) |
| Installation | Wall mount; 86 case mount; desk mount |
| Weight | 0.300000 |
|---|---|
| Brand | Dahua |
| Model | DHI-ASI3214A-W |
| Color | Black |
| Display | 4.3 inch glass touch screen with a resolution of 480 × 272. |
