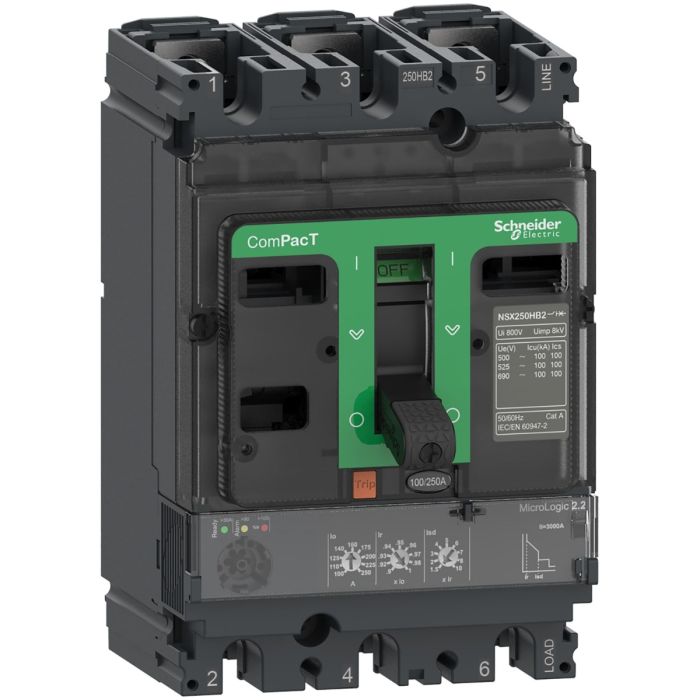

Compact NSX250N Circuit Breaker, 50kA at 415VAC, Micrologic 2.2 Trip Unit, 160A, 3 Poles, 3D
Product or component type: Circuit breaker
Device application: Distribution
Number of poles: 3P
The Schneider Electric C25N32D160 is a high-quality circuit breaker designed for robust performance and protection in a range of electrical applications. With a current rating of 160A and three poles, it's built to ensure the safe and reliable operation of your electrical circuits.
Key Features:
High Performance: This circuit breaker is part of the Compact NSX range, known for its high performance and reliable protection. It's designed to handle heavy electrical loads and provide exceptional performance in demanding environments.
Robust Construction: Schneider Electric products are known for their durability, and the C25N32D160 is no exception. It's built to last and withstand the test of time, ensuring that your electrical systems stay protected.
Micrologic 2.2 Trip Unit: The Micrologic trip unit ensures precise and adjustable protection settings, enhancing the safety of your electrical installation.
Multiple Applications: This circuit breaker is suitable for a wide range of applications, making it a versatile choice for your electrical protection needs.
Whether you need reliable circuit protection in an industrial setting or for commercial applications, the Schneider Electric C25N32D160 is a dependable choice.
| Specifications | |
Main | |
| Range | ComPacT new generation |
| Product name | ComPacT NSX new generation |
| device short name | NSX250N |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3D |
| [In] rated current | 160 A at 40 °C |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Suitability for isolation | Yes conforming to EN/IEC 60947-2 |
| utilisation category | Category A |
| [Icu] rated ultimate short-circuit breaking capacity | 90 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 36 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 35 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 15 kA at 600 V AC 50/60 Hz conforming to UL 508 | |
| Performance level | N 50 kA 415 V AC |
| Trip unit name | MicroLogic 2.2 |
| Trip unit technology | Electronic |
| Trip unit protection functions | LSoI |
| control type | Toggle |
| Circuit breaker mounting mode | Fixed |
| Complementary | |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz |
| [Uimp] rated impulse withstand voltage | 8 kV |
| [Ics] rated service short-circuit breaking capacity | 90 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
| 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 36 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 20000 cycles |
| Electrical durability | 20000 cycles at 440 V In/2 |
| 10000 cycles at 440 V In | |
| 10000 cycles at 690 V In/2 | |
| 5000 cycles at 690 V In | |
| Power dissipation per pole | 7.17 W |
| mounting support | Backplate |
| Mounting position | Horizontal and vertical |
| Flat on the back | |
| Upside connection | Front |
| downside connection | Front |
| Connection pitch | 35 mm |
| Protection type | L : for overload protection (long time) |
| So : for short time short-circuit protection with fixed delay | |
| I : for instantaneous short-circuit protection | |
| Trip unit rating | 160 A at 40 °C |
| Long-time pick-up adjustment type Ir (thermal protection) | Adjustable 9 settings |
| [Ir] long-time protection pick-up adjustment range | 63...160 A |
| Long-time protection delay adjustment type tr | Fixed |
| [tr] long-time protection delay adjustment range | 400 s at 1.5 x Ir |
| 16 s at 6 x Ir | |
| 11 s at 7.2 x Ir | |
| thermal memory | 20 minutes before and after tripping |
| Short-time protection pick-up adjustment type Isd | Adjustable 9 settings |
| [Isd] Short-time protection pick-up adjustment range | 1.5...10 x Ir |
| Short-time protection delay adjustment type tsd | Fixed |
| Instantaneous protection pick-up adjustment type Ii | Fixed |
| [Ii] instantaneous protection pick-up adjustment range | 2400 A |
| earth-leakage protection | Without |
| Zone selective interlocking ZSI | Without |
| Number of slots for electrical auxiliaries | 5 slot(s) |
| Local signalling | Flashing LED (green) for ready to operate |
| LED 105 % Ir (red) for overload | |
| LED 90 % Ir (orange) for overload | |
| Width (W) | 105 mm |
| Height (H) | 161 mm |
| Depth (D) | 86 mm |
| Net weight | 2.4 kg |
| Environment | |
| standards | EN/IEC 60947 |
| Weight | 2.400000 |
|---|---|
| Brand | Schneider Electric |
| Model | C25N32D160 |
| Device Application | Distribution |
| Depth [cm] | 8.6 |
| Width [cm] | 10.5 |
| Height [cm] | 16.1 |
| Range | NSX |
| Family | PPCCB |
| Type | Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 160 A at 40 °C |
