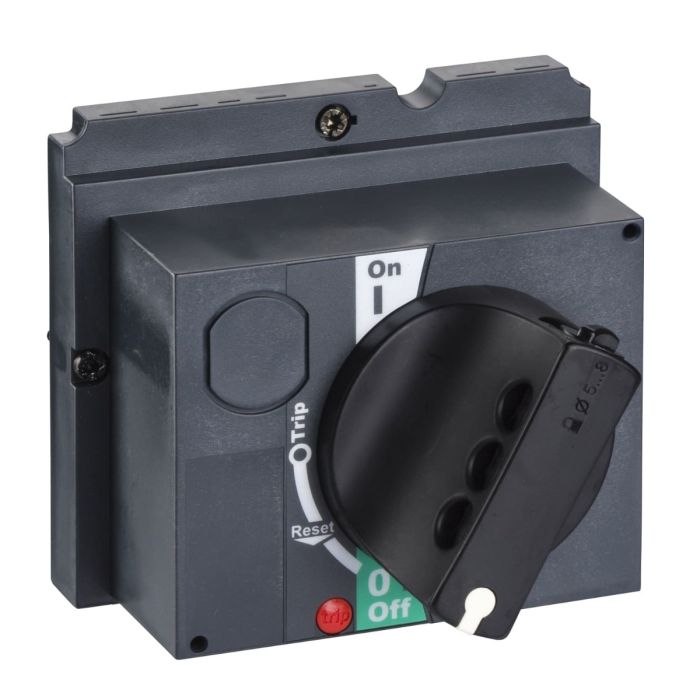

Schneider Electric Compact NSX Direct Rotary Handle, 400/630 with Black Rotary, IP40
Range: EasyPact
Product type: Rotary handle
Rotary handle mounting location: Front
Handle color: Black
It is a direct rotary handle for Compact NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
Specifications:
Main | |
| Range of product | EasyPact CVS100...250 |
| Product or component type | Rotary handle |
| Range compatibility | EasyPact CVS100...250 |
| Accessory / separate part type | Control accessories |
| Handle colour | Black |
| Handle front plate colour | Black |
| Rotary handle mounting style | Direct |
| Complementary | |
| Rotary handle padlocking | Padlock in OFF position |
| 1 to 3 padlocks | |
| Rotary handle mounting location | Front |
| Environment | |
| IP degree of protection | IP40 |
| Weight | 0.260000 |
|---|---|
| Brand | Schneider Electric |
| Model | LV429337 |
| Range | NSXAccessories |
| Family | PPCCB |
| Type | Rotary handle |
| Compatible With | ComPact ComPact NSX100, ComPact ComPact NSX160, ComPact ComPact NSX250, EasyPact EasyPact CVS100, EasyPact EasyPact CVS160, EasyPact EasyPact CVS250, PowerPact PowerPact Multistandard |
| IP Degree of Protection | IP40 |
