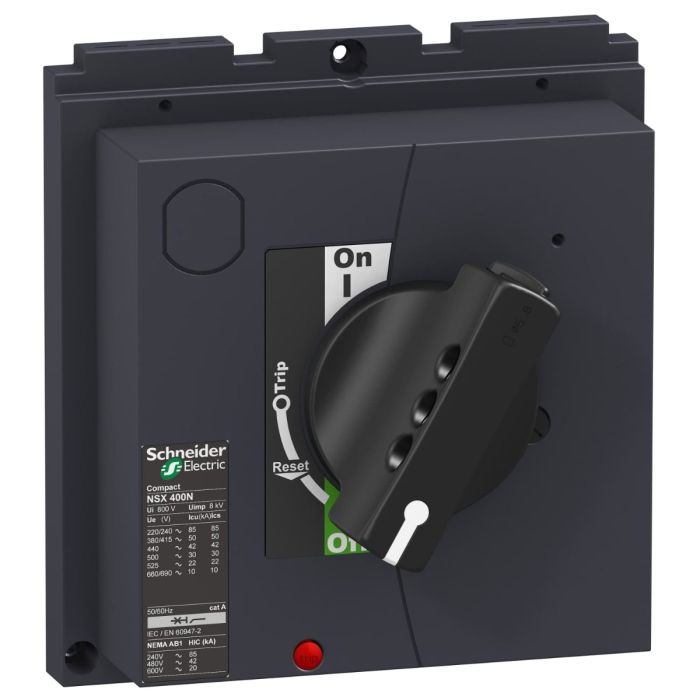

Schneider Electric Compact NSX Direct Rotary Handle, 100/160/250 with Black Rotary, IP40
Range: ComPact
Product type: Rotary handle
Rotary handle mounting location: Front
Handle color: Black
It is a direct rotary handle for Compact NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
Specifications:
Main | |
| Range of product | ComPact NSX400...630 |
| Product or component type | Rotary handle |
| accessory / separate part type | Control accessories |
| handle colour | Black |
| Handle front plate colour | Black |
| Rotary handle mounting style | Direct |
| Complementary | |
| Rotary handle padlocking | 1 to 3 padlocks |
| Padlock in OFF position | |
| Rotary handle mounting location | Front |
| Range compatibility | ComPact ComPact NSX400 |
| ComPact ComPact NSX630 | |
| EasyPact EasyPact CVS400 | |
| EasyPact EasyPact CVS630 | |
| PowerPact PowerPact Multistandard | |
| Environment | |
| IP degree of protection | IP40 |
| Weight | 0.492000 |
|---|---|
| Brand | Schneider Electric |
| Model | LV432597 |
| Range | NSXAccessories |
| Family | PPCCB |
| Type | Rotary handle |
| IP Degree of Protection | IP40 |
