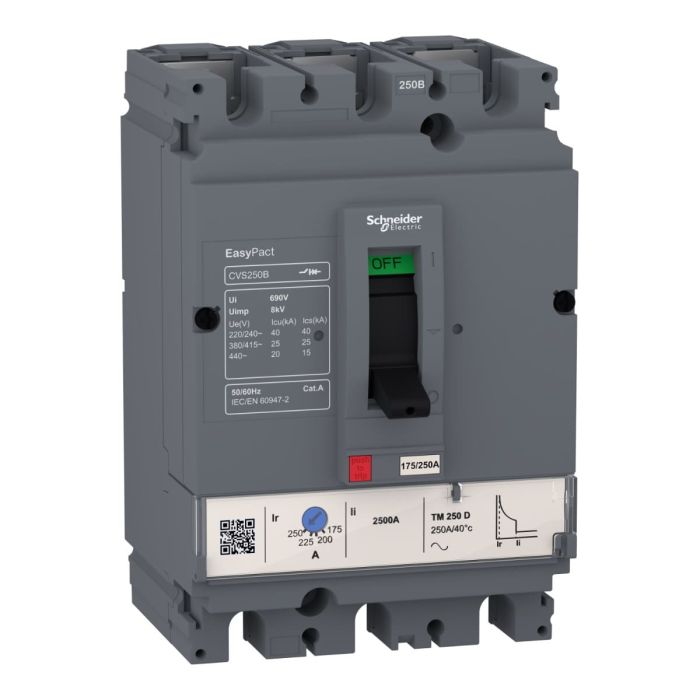

Schneider Electric Circuit breaker EasyPact CVS160B, 25 kA at 415 VAC, 125A Rating Thermal Magnetic TM-D Trip Unit, 3P 3D
Range: EasyPact
Product type: Circuit breaker
Device application: Distribution
Poles description: 3P
You May Also Like:
Schneider Electric Circuit Breaker , EasyPact EZCV250N , TMD, 63A, 3 Poles, 3DSpecial Price EGP 12,837 Regular Price EGP 25,673
EasyPact CVS160B is a 3 poles 3d fixed circuit breaker with a high level of performance and cost-saving functionality. It is an optimal choice for small and medium-sized buildings protection applications. The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 3 poles version (105mm x 161mm x 86mm) comes with a variety of optional functions and accessories. EasyPact CVS160B is compliant with international standards (IEC 60947, CCC, EAC). It can be installed in class II insulation switchboards as it is a class II front face device (IEC 60664-1).
Specifications:
Main | |
Range | EasyPact |
Range of product | EasyPact CVS100...250 |
Product name | EasyPact CVS |
Device short name | CVS160B |
Product or component type | Circuit breaker |
Device application | Distribution |
poles description | 3P |
Protected poles description | 3D |
Earth leakage protection (Vigi add on) | Without |
[In] rated current | 125 A at 40 °C |
network type | AC |
Utilisation category | Category A |
[Icu] Breaking capacity | 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 |
25 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
Trip unit name | TM-D |
Trip unit technology | Thermal-magnetic |
Trip unit rating | 125 A at 40 °C |
Protection type | Short-circuit protection (magnetic) |
Overload protection (thermal) | |
Complementary | |
[Uimp] rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
network frequency | 50/60 Hz |
Breaking capacity code | B |
[Ics] rated service breaking capacity | 15 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2 |
25 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
Mechanical durability | 25000 cycles |
Electrical durability | 12000 cycles 415 V In conforming to IEC 60947-2 |
Control type | Toggle |
Thermal protection adjustment range | 87.5…125 A |
Long time pick-up adjustment type Ir | Adjustable |
Long time pick-up adjustment range | 0.7...1 x In |
Long time delay adjustment type | Fixed |
Instantaneous pick-up adjustment type Ii | Fixed |
instantaneous pick-up adjustment range | 1250 A |
Contact position indicator | Yes |
mounting support | Backplate |
mounting mode | Fixed |
Upside connection | Front |
downside connection | Front |
Connections - terminals | Screw connection |
Connection pitch | 35 mm |
Compatibility code | CVS160 |
Width | 105 mm |
Depth | 86 mm |
Height | 161 mm |
Net weight | 1.5 kg |
Environment | |
Standards | EN 60947-2 |
IEC 60947-2 | |
Product certifications | IEC |
GOST | |
Electrical shock protection class | Class II |
Pollution degree | 3 conforming to IEC 60664-1 |
IP degree of protection | IP40 |
Ambient air temperature for operation | -25…70 °C |
Ambient air temperature for storage | -50…85 °C |
| Weight | 1.500000 |
|---|---|
| Brand | Schneider Electric |
| Model | LV516302 |
| Color | Black |
| Device Application | Distribution |
| Depth [cm] | 8.6 |
| Width [cm] | 10.5 |
| Height [cm] | 16.1 |
| Range | EasyPact |
| Family | PPCCB |
| Type | Circuit Breaker |
| Poles | 3P |
| [In] Rated Current | 125 A at 40 °C |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP40 |
