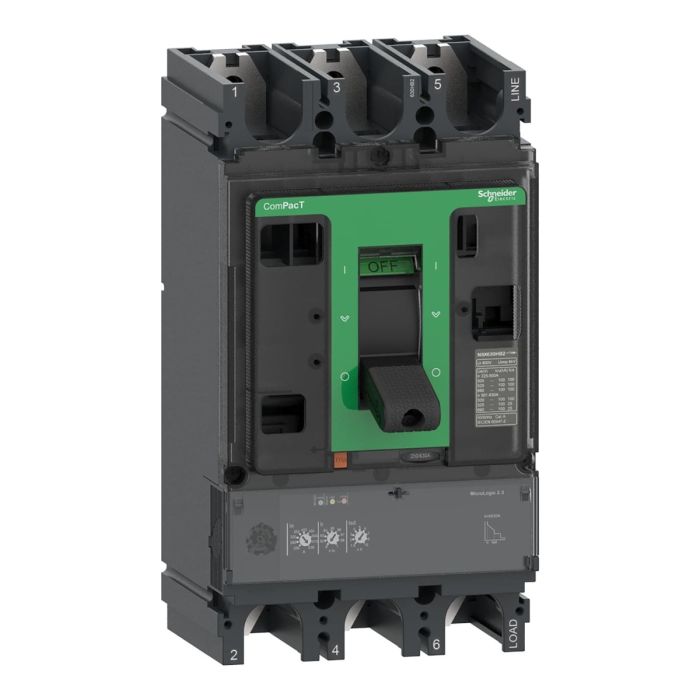

This ComPacT NSX630F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic MicroLogic 2.3 trip unit, with 630A rating. MicroLogic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. ComPacT NSX630F is part of Schneider Electric EcoStruxure Power architecture.

Specifications:


Main
Range	ComPacT new generation
Product name	ComPacT NSX new generation
device short name	NSX630F
Product or component type	Circuit breaker
Device application	Distribution
Poles description	3P
Protected poles description	3D
[In] rated current	630 A at 40 °C
[Ue] rated operational voltage	690 V AC 50/60 Hz
Network type	AC
Network frequency	50/60 Hz
Suitability for isolation	Yes conforming to EN/IEC 60947-2
utilisation category	Category A
[Icu] rated ultimate short-circuit breaking capacity	40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
	36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
	30 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2
	25 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2
	20 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2
	10 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
	20 kA at 600 V AC 50/60 Hz conforming to UL 508
Performance level	F 36 kA 415 V AC
Trip unit name	MicroLogic 2.3
Trip unit technology	Electronic
Trip unit protection functions	LSoI
control type	Toggle
Circuit breaker mounting mode	Fixed
Complementary
[Ui] rated insulation voltage	800 V AC 50/60 Hz
[Uimp] rated impulse withstand voltage	8 kV
[Ics] rated service short-circuit breaking capacity	40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
	36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
	30 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
	25 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
	10 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
	10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Mechanical durability	15000 cycles
Electrical durability	8000 cycles at 440 V In/2
	4000 cycles at 440 V In
	6000 cycles at 690 V In/2
	2000 cycles at 690 V In
Power dissipation per pole	39.69 W
mounting support	Backplate
Mounting position	Horizontal and vertical
	Flat on the back
Upside connection	Front
downside connection	Front
Connection pitch	45 mm
Protection type	L : for overload protection (long time)
	So : for short time short-circuit protection with fixed delay
	I : for instantaneous short-circuit protection
Trip unit rating	630 A at 40 °C
Long-time pick-up adjustment type Ir (thermal protection)	Adjustable 9 settings
[Ir] long-time protection pick-up adjustment range	250...630 A
Long-time protection delay adjustment type tr	Fixed
[tr] long-time protection delay adjustment range	400 s at 1.5 x Ir
	16 s at 6 x Ir
	11 s at 7.2 x Ir
thermal memory	20 minutes before and after tripping
Short-time protection pick-up adjustment type Isd	Adjustable 9 settings
[Isd] Short-time protection pick-up adjustment range	1.5...10 x Ir
Short-time protection delay adjustment type tsd	Fixed
Instantaneous protection pick-up adjustment type Ii	Fixed
[Ii] instantaneous protection pick-up adjustment range	6900 A
earth-leakage protection	Without
Zone selective interlocking ZSI	Without
Number of slots for electrical auxiliaries	6 slot(s)
Local signalling	Flashing LED (green) for ready to operate
	LED 105 % Ir (red) for overload
	LED 90 % Ir (orange) for overload
Width (W)	140 mm
Height (H)	255 mm
Depth (D)	110 mm
Net weight	6.2 kg
Environment
standards	EN/IEC 60947
product certifications	CCC
	EAC
	Marine
Overvoltage category	Class II
Electrical shock protection class	Class II

More Information

More Information
Weight	6.200000
Brand	Schneider Electric
Model	C63F32D630
Device Application	Distribution
Depth [cm]	11
Width [cm]	18.5
Height [cm]	25.5
Range	NSX
Family	PPCCB
Type	Circuit Breaker
Poles	3P
[In] Rated Current	630 A at 40 °C
Voltage ~ Frequency	50-60 Hz
IP Degree of Protection	IP40
IK Degree of Protection	IK07
