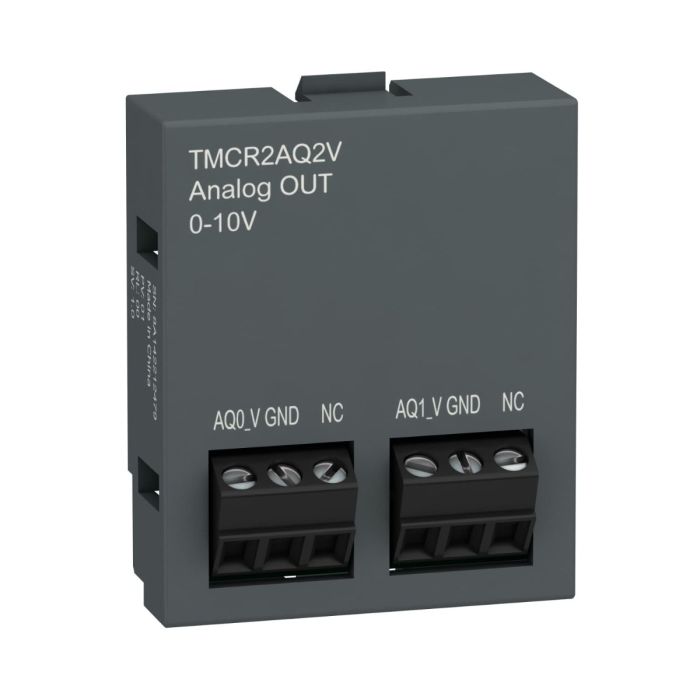

Schneider Electric Cartridge M200, 2 Analog Voltage Outputs
Range: Easy Modicon M200
Product type: Analogue output cartridge
Product compatibility: Easy Modicon M200
Insulation: Non-insulated between analogue output and internal logic
The TMCR2AQ2V is a high-quality cartridge designed for the M200 series, providing 2 analog voltage outputs. This cartridge is a valuable addition to your M200 system, offering precise analog voltage outputs for various applications.
Key Features:
Analog Voltage Outputs: With 2 analog voltage outputs, this cartridge allows your M200 system to provide accurate analog voltage signals, making it suitable for applications that require precise voltage control or monitoring.
Versatile Compatibility: The TMCR2AQ2V is seamlessly compatible with your M200 system, ensuring easy integration and operation.
Reliable Performance: Designed to meet high-quality standards, this cartridge delivers consistent and reliable performance.
The TMCR2AQ2V is an essential tool for applications demanding precision in analog voltage outputs, providing you with the control and monitoring capabilities you need.
Specifications:
| Main | |
| Range of product | Easy Modicon M200 |
| Product or component type | Analogue output cartridge |
| Product compatibility | Easy Modicon M200 |
| Complementary | |
| analogue output number | 2 |
| Analogue output type | Voltage: 0...10 V |
| Analogue output resolution | 12 bits |
| LSB value | 2.44 mV 0...10 V voltage |
| Load type | Resistive |
| Load impedance ohmic | >= 2 kOhm |
| Conversion time | 20 ms |
| Stabilisation time | 40 ms |
| Absolute accuracy error | +/- 1 % of full scale |
| +/- 0.3 % of full scale at 25 °C | |
| Temperature drift | +/- 0.02 %FS/°C |
| Repeat accuracy | +/- 0.4 %FS |
| Non-linearity | +/- 0.01 %FS |
| Cross talk | <= 1 LSB |
| Type of cable | Twisted shielded pairs cable |
| Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for outputs |
| Maximum cable distance between devices | Twisted shielded pairs cable: <30 m for output |
| Insulation | Non-insulated between analogue output and internal logic |
| height | 41 mm |
| Depth | 15 mm |
| Width | 35 mm |
| Net weight | 0.012 kg |
| Environment | |
| Immunity to microbreaks | 10 ms |
| Weight | 0.012000 |
|---|---|
| Brand | Schneider Electric |
| Model | TMCR2AQ2V |
| Depth [cm] | 1.5 |
| Width [cm] | 3.5 |
| Height [cm] | 4.1 |
| Range | M200 |
| Family | IDMST |
