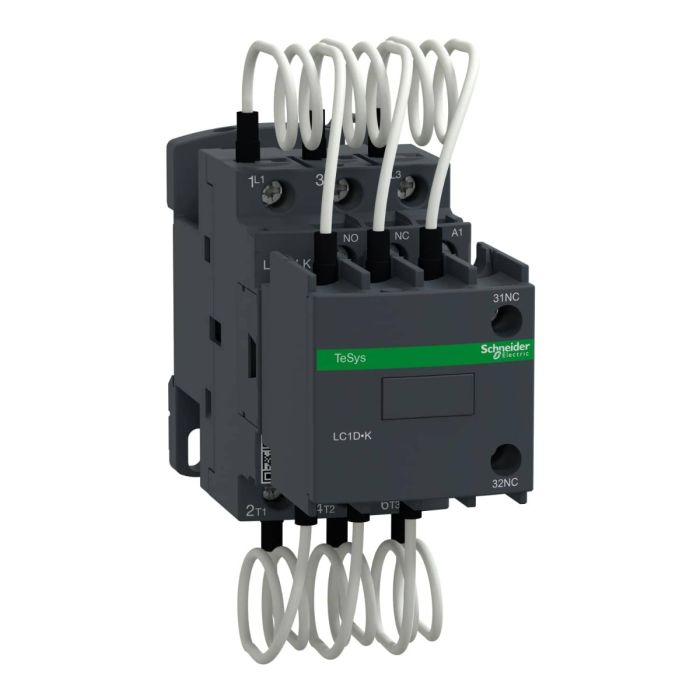

Schneider Electric Capacitor Contactor TeSys D, 20 kvar at 400 V, 50 Hz, Coil 220 V AC, 50/60 Hz
In stock
SKU
LC1DLKM7
Special Price EGP 7,217 Regular Price EGP 9,623
Schneider Electric Capacitor Contactor TeSys D, 20 kvar at 400 V, 50 Hz, Coil 220 V AC, 50/60 Hz is available to buy in increments of 1
Quick Overview
Range: TeSys
Product type: Capacitor duty contactor
Device application: Control
Number of poles: 3P
TeSys D contactor, 3 poles (3NO), for switching 3-phase capacitor banks up to 20kVAR@400V 50Hz (33kVAR@690V). It provides a 220V 50/60Hz AC coil, 1NO+2NC instantaneous auxiliary contacts, with front mounted early make poles and pre-wired damping resistors for current limitation. For operating rates until 240 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Certified IEC 60947 and compliant with shunt capacitors standard IEC 60831, Green Premium product (RoHS/REACh).
Specifications:
| Main | |
| Range | TeSys |
| TeSys Deca | |
| Product name | TeSys LC1D.K |
| TeSys Deca | |
| Product or component type | Capacitor duty contactor |
| Device short name | LC1DLK |
| Device application | Control |
| contactor application | Power factor correction |
| utilisation category | AC-6b |
| Poles description | 3P |
| power pole contact composition | 3 NO |
| device location in system | Line interruption |
| Inside delta interruption | |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz |
| Reactive power rating | 11 kvar at 230 V AC 50 Hz 60 °C |
| 20 kvar at 400 V AC 50 Hz 60 °C | |
| 21 kvar at 440 V AC 50 Hz 60 °C | |
| 33 kvar at 690 V AC 50 Hz 60 °C | |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Electrical durability | 300000 cycles at Ue 400 V |
| 200000 cycles at Ue 690 V | |
| mounting support | DIN rail |
| Plate | |
| standards | EN/IEC 60947-1 |
| EN/IEC 60947-4-1 | |
| IEC 60335-1 | |
| product certifications | IECEE CB Scheme |
| UKCA | |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end | |
| Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end | |
| Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 1 2.5…16 mm² - cable stiffness: solid | |
| Power circuit: screw clamp terminals 2 2.5…6 mm² - cable stiffness: solid | |
| Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible without cable end | |
| Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end | |
| Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end | |
| Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end | |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals |
| Power circuit: 2.5 N.m - on screw clamp terminals | |
| Maximum operating rate | 240 cyc/h |
| Complementary | |
| Auxiliary contacts type | Type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
| Environment | |
| IP degree of protection | IP20 front face conforming to IEC 60529 |
| Ambient air temperature for operation | -5…60 °C |
| Ambient air temperature for storage | -60…80 °C |
| Operating altitude | 0...3000 m |
| height | 125 mm |
| Width | 45 mm |
| Depth | 127 mm |
| Net weight | 0.6 kg |
| Weight | 0.600000 |
|---|---|
| Brand | Schneider Electric |
| Model | LC1DLKM7 |
| Depth [cm] | 12.7 |
| Width [cm] | 4.5 |
| Height [cm] | 12.5 |
| Range | Capacitor Contactors |
| Family | PPCTR |
| Poles | 3P |
| IP Degree of Protection | IP20 |
