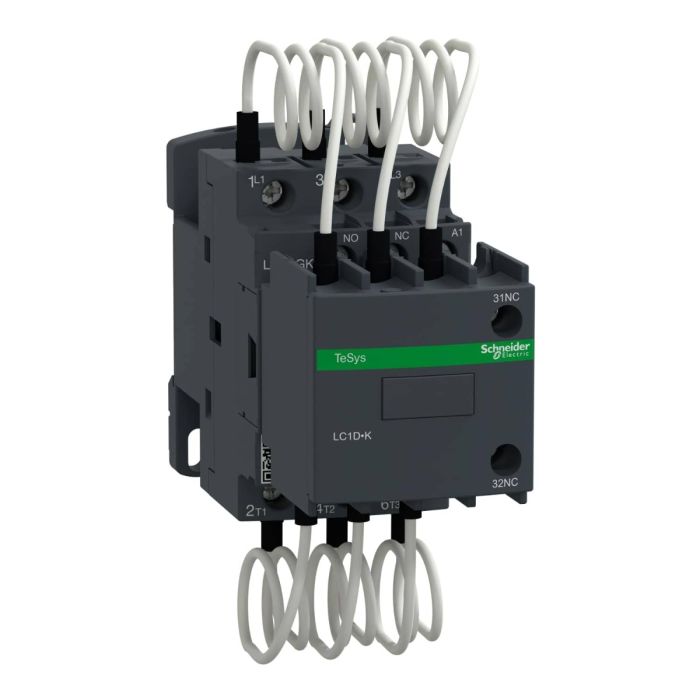

Capacitor Contactor TeSys D, 16.7 kvar at 400 V, 50 Hz, Coil 220 V AC, 50/60 Hz

Out of stock
SKU
LC1DGKM7
Special Price EGP 5,796 Regular Price EGP 7,728
Quick Overview

Product or component type: Capacitor duty contactor
Device application: Control
Number of poles: 3P

The LC1DGKM7 is a TeSys D series capacitor contactor designed for managing electrical capacitors. It is capable of handling capacitive loads with a rating of 16.7 kvar at 400 V and 50 Hz. The coil operates at 220 V AC, suitable for power supplies with a frequency of 50 or 60 Hz.



Key Features:

Capacitor Contactor: This contactor is specifically designed for managing capacitors, making it an essential component in power factor correction systems.

16.7 kvar Rating: It can handle capacitive loads of up to 16.7 kvar at 400 V, contributing to improved power factor and energy efficiency.

Wide Voltage Range: The coil operates at 220 V AC, compatible with a variety of power supply systems operating at 50 or 60 Hz.



The LC1DGKM7 is a reliable and efficient solution for power factor correction applications, helping improve the utilization of electrical power and reduce energy costs.

Specifications

Main
RangeTeSys
TeSys Deca
Product nameTeSys LC1D.K
TeSys Deca
Product or component typeCapacitor duty contactor
Device short nameLC1DGK
Device applicationControl
contactor applicationPower factor correction
utilisation categoryAC-6b
Poles description3P
power pole contact composition3 NO
[Ue] rated operational voltagePower circuit: 690 V AC 50/60 Hz
Reactive power rating9.5 kvar at 230 V AC 50 Hz 60 °C
16.7 kvar at 400 V AC 50 Hz 60 °C
18 kvar at 440 V AC 50 Hz 60 °C
28.5 kvar at 690 V AC 50 Hz 60 °C
Control circuit typeAC at 50/60 Hz
[Uc] control circuit voltage220 V AC 50/60 Hz
Auxiliary contact composition1 NO + 2 NC instantaneous
Electrical durability300000 cycles at Ue 400 V
200000 cycles at Ue 690 V
mounting supportDIN rail
Plate
standardsEN/IEC 60947-1
EN/IEC 60947-4-1
IEC 60335-1
product certificationsIECEE CB Scheme
UKCA
Connections - terminalsControl circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 2.5…16 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 2 2.5…6 mm² - cable stiffness: solid
Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
Tightening torqueControl circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 2.5 N.m - on screw clamp terminals
Maximum operating rate240 cyc/h
Complementary
Auxiliary contacts typeType mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1
Environment
IP degree of protectionIP20 front face conforming to IEC 60529
Ambient air temperature for operation-5…60 °C
Ambient air temperature for storage-60…80 °C
Operating altitude0...3000 m
height125 mm
Width45 mm
Depth127 mm
Net weight0.6 kg
