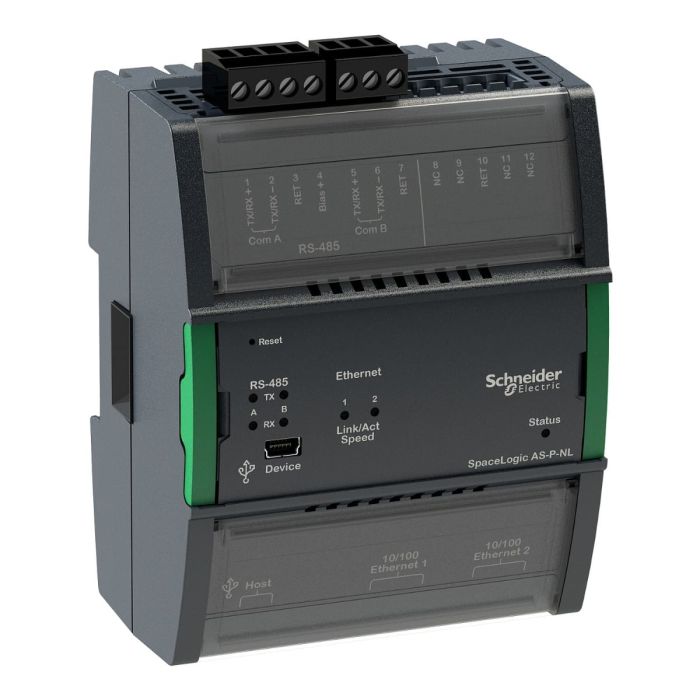

Automation server, SpaceLogic, AS-P-NL, 2 RS-485 ports, 2 10/100 ethernet ports
Memory type: 4 GB flash, 512 MB RAM
Maximum power consumption in W: 10 W
The SpaceLogic AS-P-NL server is at the core of an EcoStruxure BMS and performs key functionality. The server performs functionality such as control logic, trend logging and alarm supervision. It supports communication and connectivity to the I/O and field buses. The SpaceLogic AS-P server can act as a standalone server, control I/O modules, monitor and manage field bus devices. This model features two ethernet ports, two RS-485 ports, one I/O bus port, one USB device port and one USB host port. Its dimensions are 114 mm (4.5 in.) in height, 90 mm (3.6 in.) in width and 64 mm (2.5 in.) in depth. Plastic flame rating is UL94-5VB and the ingress protecton rating is IP20. A terminal base TB-ASP-W1 is required for each SpaceLogic AS-P.
Specifications:
Main | |
Product or component type | Network controller |
communication service | TLS 1.0 |
Backup time | 10 days |
Width | 90 mm |
mounting mode | DIN rail mount |
Product certifications | BTL B-BC |
cUL listed | |
UL listed | |
RCM | |
maximum power consumption in W | 10 W |
Clock drift | +/- 52 s/month |
Net weight | 0.321 kg |
Device short name | AS-P-NL |
Height | 114 mm |
Model | AS-P-NL |
Colour | Black |
Network frequency | 50 Hz |
60 Hz | |
ambient air temperature for storage | -20…70 °C |
Depth | 64 mm |
Ambient air temperature for operation | 0…50 °C |
IP degree of protection | IP20 |
Standards | EN 61000-6-2 |
EN 50491-5-3 | |
EN 60730-1 | |
EN 60730-2-11 | |
EN 50491-3 | |
UL 916 | |
EN 50491-1 | |
EN 61000-6-3 | |
EN 50491-5-2 | |
FCC part 15 Subpart B class B | |
[Us] rated supply voltage | 24 V AC |
24 V DC | |
Number of port | 2, connector type: RJ45 |
1, connector type: USB device port Mini-B | |
1, connector type: USB host port type A | |
2 RS485 | |
Communication port support | ETHERNET 10/100BASE-TX |
Memory type | 4 GB flash |
512 MB RAM | |
Maximum number of connected devices | 464 |
Complementary | |
Communication port protocol | BACnet |
HTTP | |
HTTPS | |
Modbus TCP serial line master or slave | |
TCP (Transmission Control Protocol) | |
Environment | |
Relative humidity | 0…95 % (RH, non-condensing) |
| Weight | 0.321000 |
|---|---|
| Brand | Schneider Electric |
| Model | SXWASPXXX10002 |
| Color | Black |
| Depth [cm] | 6.4 |
| Width [cm] | 9 |
| Height [cm] | 11.4 |
| Range | EcoStruxure Building Operation |
| IP Degree of Protection | IP20 |
