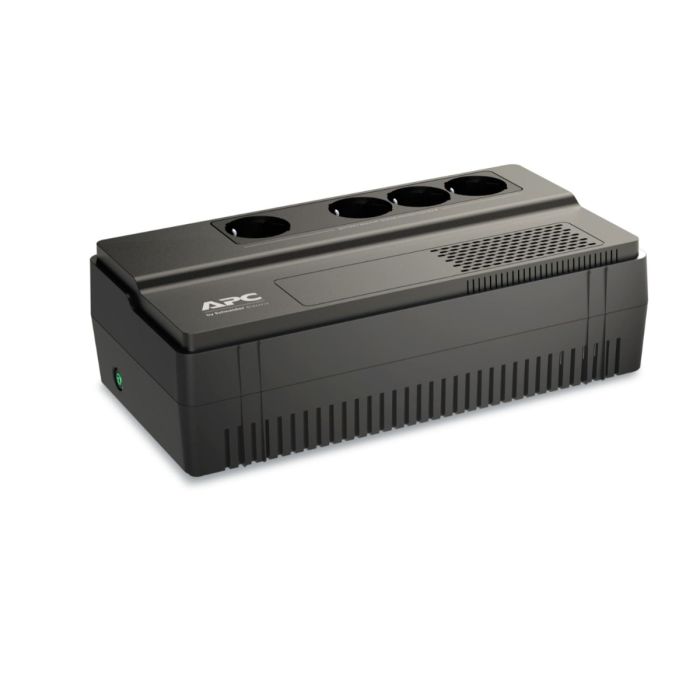

APC APC Easy UPS, 650VA, Floor/Wall Mount, 230V, 4x CEE 7/3 Schuko outlets, AVR, BV650I-GR
Quick Overview
Range: Easy UPS
Product type: Uninterruptible power supply (UPS)
Input Voltage: 230 V
Output Voltage: 230 V
This APC Easy UPS provides power protection for unstable power conditions in homes and small offices, ensuring consistent and reliable connectivity at the most critical moments. The 650VA floor/wall mount UPS has 4 total outlets, all of which provide battery back up and surge protection.
Specifications:
| Main | |
| Main Input Voltage | 230 V |
| Main Output Voltage | 230 V |
| Rated power in W | 375 W |
| Rated power in VA | 650 VA |
| Product or component type | Uninterruptible power supply (UPS) |
| Input Connection Type | Schuko CEE 7/7P |
| output connection type | 4 Schuko CEE 7 |
| Cable length | 1.50 m |
| Number of cables | 1 |
| Battery type | Lead-acid battery |
| Provided equipment | User manual |
| Range of product | Easy UPS |
| Batteries & Runtime | |
| Efficiency | View Efficiency Graph |
| Number of battery filled slots | 0 |
| Number of battery free slots | 0 |
| Battery recharge time | 8 h |
| Battery voltage | 12 V |
| Battery capacity | 7.0 Ah |
| Battery life | 3…5 year(s) |
| Replacement battery | APCRBCV210 |
| Extended runtime | 0 |
| General | |
| Number of power module free slots | 0 |
| Number of power module filled slots | 0 |
| Redundant | No |
| UPS size | WS |
| Physical | |
| Colour | Black |
| Height | 92.5 mm |
| Width | 112 mm |
| Depth | 305 mm |
| Net weight | 4.5 kg |
| Mounting preference | No preference |
| Mounting mode | Not rack-mountable |
| Two post mountable | 0 |
| USB compatible | No |
| Input | |
| Network frequency | 50/60 Hz +/- 5 Hz auto-sensing |
| Input voltage limits | 170...280 V |
| Output | |
| Maximum configurable power in W | 375 W |
| Output frequency | 50/60 Hz +/- 1 Hz unsynchronised |
| UPS type | Line interactive |
| Wave type | Stepped approximation to a sinewave |
| Graph display | 1 |
| Maximum configurable power in VA | 650 VA |
| Transfer time | 6 ms typical : 10 ms maximum |
| Conformance | |
| Product certifications | CE |
| Standards | EN/IEC 62040-1:2019/A11:2021 |
| EN/IEC 62040-2:2006/AC:2006 | |
| EN/IEC 62040-2:2018 | |
| Environmental | |
| Ambient air temperature for operation | 0…40 °C |
| Relative humidity | 0…90 % |
| Operating altitude | 0...6667 ft |
| Ambient air temperature for storage | -20…50 °C |
| Storage Relative Humidity | 0…90 % |
| Storage altitude | 0…15240 m |
| Acoustic level | 40 dBA |
| IP degree of protection | IP20 |
| Communications & Management | |
| Alarm | Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm |
| Surge Protection and Filtering | |
| Surge energy rate | 156 J |
| Weight | 4.500000 |
|---|---|
| Brand | APC |
| Model | BV650I-GR |
| Color | Black |
| Depth [cm] | 30.5 |
| Width [cm] | 16.05 |
| Height [cm] | 9.25 |
| Range | Easy UPS |
| Rated Power in VA | 650 VA |
| Rated Power In W | 375 Watt |
| Power Factor | 0.5 : 0.6 |
| Transfer Time | 6 ms typical : 10 ms maximum |
| Input Voltage | 230 V |
| Output Voltage | 230 V |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
