Advanced display, SpaceLogic HMI, v3, for AS/AS-B/AS-P, 10.1" high-resolution display, IP54
Operating system: Android 8.1
Current consumption: 1.27 A
Flame retardance: UL94-V0

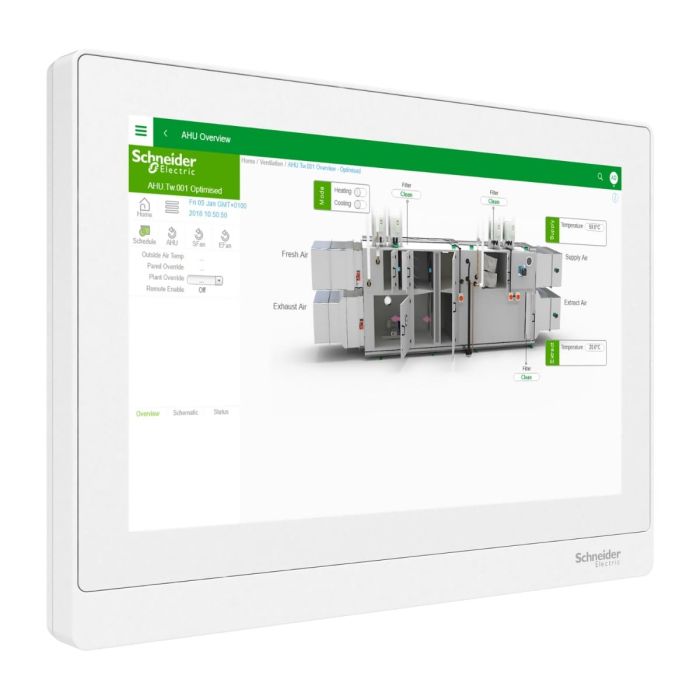

The SpaceLogic Advanced Display V3 bundle includes HMI device, cable fitting with nut, and earth ground screw with washer. It can be locked to an application such as EcoStruxure Building Operation WebStation to create a tool for local operation of an EcoStruxure BMS. It provides an interface through which users can locally access EcoStruxure BMS servers from an HMI terminal installed on a control cabinet. The HMI is based on an Android platform with high-resolution touchscreen display (1280 x 800 pixels). Its dimensions are 195.6 mm (7.7 in.) in height, 258 mm (10.2 in.) in width, 25 mm (1.0 in.) in depth and the display size is 255 mm (10.1 in.). Plastic flame rating is UL94 V-0 and the ingress protecton rating is IP54. The HMI can be installed on a control cabinet. The HMI can communicate with SpaceLogic servers with Y-shaped USB cables (SXWADUSBC10002 or SXWADUSBC10003).
Specifications:
Main | |
operating system | Android 8.1 |
Current consumption | 1.27 A |
Flame retardance | UL94-V0 |
Width | 258 mm |
mounting mode | Panel-mounted |
Product certifications | CE |
FCC | |
UL 60950 | |
RCM | |
Embedding depth | 15.2 mm |
Net weight | 0.933 kg |
Product or component type | HMI |
Height | 195.6 mm |
Colour | White |
Enclosure material | ABS/PC |
Range | SpaceLogic |
[In] rated current | 1:00 AM |
ambient air temperature for storage | -20…60 °C |
Depth | 25 mm |
Display type | TFT LCD touchscreen |
display size | 10.1 inch |
Ambient air temperature for operation | 0…40 °C |
display resolution | 1280 x 800 pixels |
Memory type | 2 GB RAM |
Communication port protocol | USBNet: USB 2.0 |
[Us] rated supply voltage | 24 V DC +/- 10 % |
15...24 V DC +/- 10 % | |
Range compatibility | SpaceLogic AS |
SpaceLogic AS-P | |
SpaceLogic AS-B | |
Standards | EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
IEC 60950-1:ed. 2:2005+Am1:2009+Am2:2013 | |
UL 60950-1:ed. 2:2014 | |
CSA C22.2 No. 60950-1-07:ed. 2:2014 | |
EN 55024:2010 | |
FCC part 15 Subpart B class B | |
Relative humidity | 0…95 % RH, non-condensing |
Number of port | 1, connector type: USB type C |
Processor name | Intel Celeron N3350 dual core at 1.1 GHz |
Communication network type | Wi-Fi IEEE 802.11 b/g/n at 2.4 GHz |
Environment | |
IP degree of protection | IP54 |
| Weight | 1.000000 |
|---|---|
| Brand | Schneider Electric |
| Model | SXWADBUND10003 |
| Color | White |
| Depth [cm] | 2.5 |
| Width [cm] | 25.8 |
| Height [cm] | 19.56 |
| Range | SpaceLogic |
| [In] Rated Current | 1A |
| IP Degree of Protection | IP54 |
