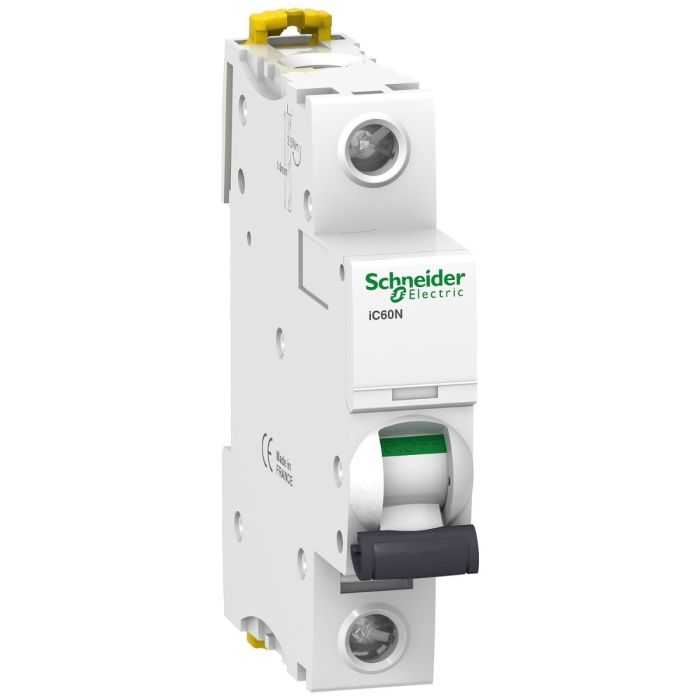

Acti9 iC60N 40 A Miniature Circuit Breaker 1P, C curve, Schneider Electric

In stock
SKU
A9F77140
Special Price EGP 316 Regular Price EGP 483
Quick Overview

Poles description: 1P
Number of protected poles: 1
[In] rated current: 40 A
Network type: AC, DC
Curve code: C

The Schneider Electric A9F77140 Acti9 IC60N Miniature Circuit Breaker is a dependable and compact solution designed to ensure the safety of electrical circuits. With a 1-pole configuration and a 40 A current rating, this C-curve circuit breaker is ideal for a wide range of applications. It offers protection up to 6000 A according to IEC 60898/1 and has a short-circuit breaking capacity of 10 kA per IEC 60947-2, making it a reliable choice for circuit protection.



Key Features:

Current Rating: Rated at 40 A, suitable for various electrical circuits.

C Curve: The C curve characteristic provides effective protection for circuits and equipment.

1-Pole Configuration: Designed as a single-pole circuit breaker.

IEC Compliance: Complies with IEC 60898/1 and IEC 60947-2 standards for safety and performance.



The Schneider Electric A9F77140 Acti9 IC60N Miniature Circuit Breaker is a crucial component for protecting your electrical systems.



Specifications



Main



Device application

Distribution

Range

Acti9

Product name

Acti9 iC60

Product or component type

Miniature circuit-breaker

Device short name

IC60N

Poles description

1P

Number of protected poles

1

[In] rated current

40 A

Network type

AC



DC

Trip unit technology

Thermal-magnetic

Curve code

C

Breaking capacity

6000 A Icn at 230 V AC 50/60 Hz conforming to EN/IEC 60898-1



10 kA Icu at 60...72 V DC conforming to EN/IEC 60947-2



15 kA Icu at 12...60 V DC conforming to EN/IEC 60947-2



10 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2



36 kA Icu at 12...60 V AC 50/60 Hz conforming to EN/IEC 60947-2



20 kA Icu at 100...133 V AC 50/60 Hz conforming to EN/IEC 60947-2

Utilisation category

Category A conforming to EN 60947-2



Category A conforming to IEC 60947-2

Suitability for isolation

Yes conforming to EN 60898-1



Yes conforming to EN 60947-2



Yes conforming to IEC 60898-1



Yes conforming to IEC 60947-2

standards

IEC 60947-2



EN 60947-2



IEC 60898-1



EN 60898-1

Quality labels

NF

Complementary



Network frequency

50/60 Hz

Magnetic tripping limit

8 x In +/- 20 %

[Ics] rated service breaking capacity

27 kA 75 % conforming to EN 60947-2 - 12...60 V AC 50/60 Hz



7.5 kA 75 % conforming to EN 60947-2 - 220...240 V AC 50/60 Hz



27 kA 75 % conforming to IEC 60947-2 - 12...60 V AC 50/60 Hz



7.5 kA 75 % conforming to IEC 60947-2 - 220...240 V AC 50/60 Hz



15 kA 75 % conforming to IEC 60947-2 - 100...133 V AC 50/60 Hz



15 kA 75 % conforming to EN 60947-2 - 100...133 V AC 50/60 Hz



6000 A 100 % conforming to EN 60898-1 - 230 V AC 50/60 Hz



6000 A 100 % conforming to IEC 60898-1 - 230 V AC 50/60 Hz



10 kA 100 % conforming to EN 60947-2 - 72 V DC



10 kA 100 % conforming to IEC 60947-2 - 72 V DC



15 kA 100 % conforming to EN 60947-2 - 12...60 V DC



15 kA 100 % conforming to IEC 60947-2 - 12...60 V DC

Limitation class

3 conforming to EN 60898-1



3 conforming to IEC 60898-1

[Ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN 60947-2



500 V AC 50/60 Hz conforming to IEC 60947-2

[Uimp] rated impulse withstand voltage

6 kV conforming to EN 60947-2



6 kV conforming to IEC 60947-2

Contact position indicator

Yes

control type

Toggle

Local signalling

Trip indicator

Mounting mode

Fixed

mounting support

DIN rail

Comb busbar and distribution block compatibility

Top or bottom: YES

9 mm pitches

2

height

85 mm

Width

18 mm

Depth

78.5 mm

Net weight

0.215 kg

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Single terminal (top or bottom) 1…35 mm² rigid



Single terminal (top or bottom) 1…25 mm² flexible

Wire stripping length

14 mm for top or bottom connection

Tightening torque

3.5 N.m top or bottom

earth-leakage protection

Without

Environment



IP degree of protection

IP20 conforming to IEC 60529



IP20 conforming to EN 60529

Pollution degree

3 conforming to EN 60947-2



3 conforming to IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-1

Relative humidity

95 % at 55 °C

Operating altitude

0...2000 m

Ambient air temperature for operation

-35…70 °C

Ambient air temperature for storage

-40…85 °C

"

More Information
BrandSchneider Electric
ModelA9F77140
ColorWhite
Device ApplicationDistribution
Depth [cm]7.85
Width [cm]1.8
Height [cm]8.5
RangeActi9
TypeMiniature circuit-breaker
Poles1P
[In] Rated Current40 A
