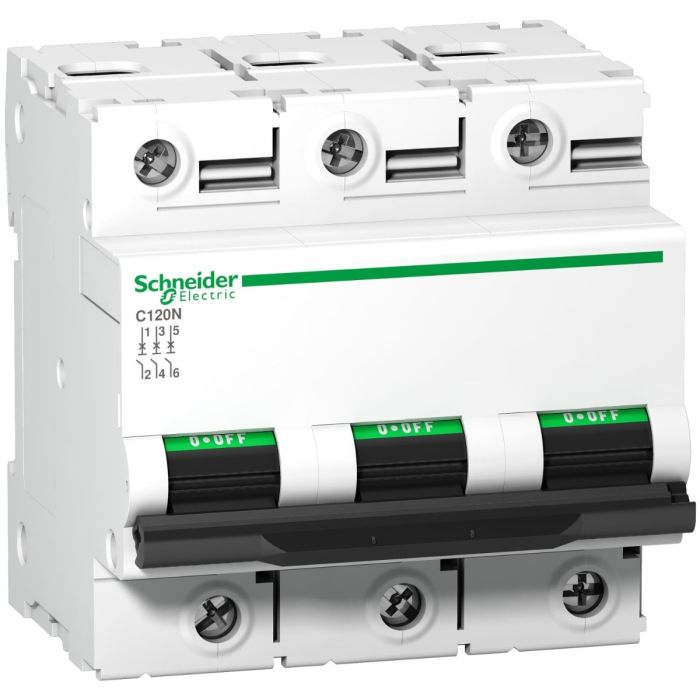

Schneider Electric Acti9 C120N, 80 A Miniature Circuit-Breaker, 3P, C curve
Range: Acti9
Product type: Miniature circuit-breaker
Device application: Distribution
Poles description: 3P
This Acti9 C120N is a low voltage multistandard miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 80A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard and 10000A at 230VAC to 400VAC conforming to EN/IEC 60898-1 standard. It complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. This miniature circuit breaker protects circuit against short circuit and overload current. The presence of green strip guarantees contact open physically and allows work to be carried out safely on the downstream circuit. It has good overvoltage withstand capacity. The product is designed to offer a high industrial performance level It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is equal or below 375VDC, 220VAC to 240VAC, 230VAC to 400VAC, 380VAC to 415VAC or 440VAC. The Ui rated insulation voltage is 500VAC The frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 9 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV.
Specifications:
Range of product | C120 |
Range | Acti9 |
Product name | C120 |
Product or component type | Miniature circuit-breaker |
Device short name | C120N |
Device application | Distribution |
Poles description | 3P |
Number of protected poles | 3 |
[In] rated current | 80 A at 30 °C |
Network type | AC |
Trip unit technology | Thermal-magnetic |
Curve code | C |
Breaking capacity | 10000 A Icn at 230...400 V AC 50/60 Hz conforming to EN/IEC 60898-1 |
| 6 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 20 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 10 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
| 10 kA Icu at <= 375 V DC conforming to EN/IEC 60947-2 |
Suitability for isolation | Yes conforming to IEC 60947-2 |
Complementary | |
Network frequency | 50/60 Hz |
[Ue] rated operational voltage | <= 375 V DC |
| 380...415 V AC 50/60 Hz |
| 220...240 V AC 50/60 Hz |
| 440 V AC 50/60 Hz |
| 230...400 V AC 50/60 Hz |
Magnetic tripping limit | 5...10 x In |
[Ics] rated service breaking capacity | 7500 A 75 % conforming to EN/IEC 60898-1 - 230...400 V AC 50/60 Hz |
| 4.5 kA 75 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz |
| 7.5 kA 75 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz |
| 15 kA 75 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz |
| 10 kA 100 % conforming to EN/IEC 60947-2 - <= 375 V DC |
Limitation class | 3 conforming to EN/IEC 60947-2 |
[Ui] rated insulation voltage | 500 V AC 50/60 Hz conforming to EN/IEC 60947-2 |
[Uimp] rated impulse withstand voltage | 6 kV conforming to EN/IEC 60947-2 |
Contact position indicator | Yes |
Control type | Toggle |
Local signalling | ON/OFF indication |
Mounting mode | Clip-on |
Mounting support | 35 mm symmetrical DIN rail |
Comb busbar and distribution block compatibility | YES |
9 mm pitches | 9 |
Height | 81 mm |
Width | 81 mm |
Depth | 73 mm |
Net weight | 0.615 kg |
Colour | White |
Mechanical durability | 20000 cycles |
Electrical durability | 5000 cycles conforming to IEC 60947-2 |
Locking options description | Handle sealable with cable diameter 0.7mm in OFF or ON position |
Connections - terminals | Tunnel type terminals1…50 mm² rigid |
| Tunnel type terminals1.5…35 mm² flexible |
Wire stripping length | 15 mm |
Tightening torque | 3.5 N.m |
earth-leakage protection | Separate block |
Environment | |
Standards | EN/IEC 60898-1 |
| EN/IEC 60947-2 |
Product certifications | EAC |
IP degree of protection | IP20 conforming to IEC 60529 |
Pollution degree | 3 conforming to IEC 60947-2 |
Overvoltage category | IV |
Tropicalisation | 2 conforming to IEC 60068-1 |
Relative humidity | 95 % at 55 °C |
Operating altitude | 2000 m |
Ambient air temperature for operation | -25…70 °C |
Ambient air temperature for storage | -40…85 °C |
The Schneider Electric A9N18365 Acti9 C120N Miniature Circuit Breaker is an essential component for safeguarding your electrical systems.
"
| Specifications | |
Main | |
| Range of product | C120 |
| Range | Acti9 |
| Product name | C120 |
| Product or component type | Miniature circuit-breaker |
| Device short name | C120N |
| Device application | Distribution |
| Poles description | 3P |
| Number of protected poles | 3 |
| [In] rated current | 80 A at 30 °C |
| Network type | AC |
| Trip unit technology | Thermal-magnetic |
| Curve code |
| Weight | 0.615000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9N18365 |
| Device Application | Distribution |
| Depth [cm] | 7.3 |
| Width [cm] | 8.1 |
| Height [cm] | 8.1 |
| Range | C120 |
| Family | HDCFD |
| Type | Miniature circuit-breaker |
| Poles | 3P |
| [In] Rated Current | 80 A at 30 °C |
| Voltage ~ Frequency | 50-60 Hz |
| IP Degree of Protection | IP20 |
