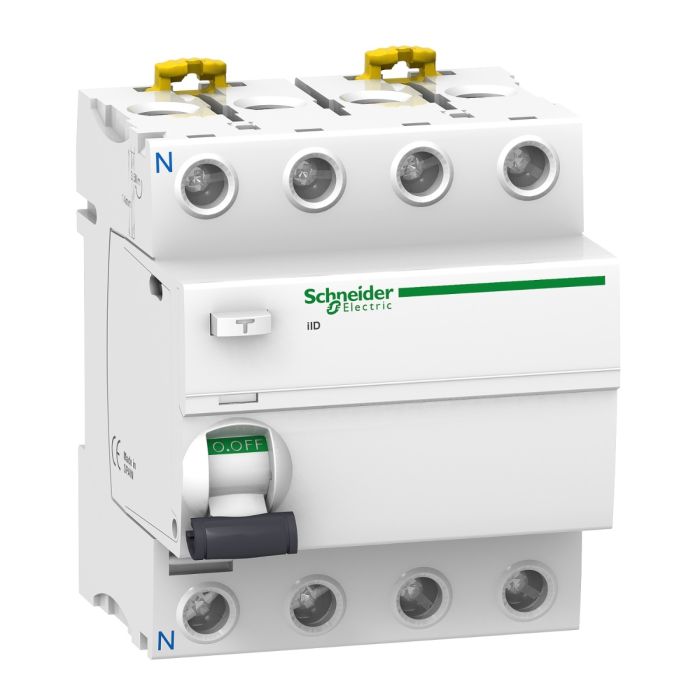

Acti 9 iID - RCCB - 4P - 63A - 300mA - type AC
Poles description: 4P
[In] rated current: 63 A
Earth-leakage sensitivity: 300 mA
This Acti9 iID is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 63A, AC type protection class and a 300mA earth leakage sensitivity. This product protects against electrical shock by indirect contact and fire hazards. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance.
Specifications:
Main | |
Range | Acti9 |
Product name | Acti9 iID |
Product or component type | Residual current circuit breaker (RCCB) |
Device short name | iID |
Poles description | 4P |
Neutral position | Left |
[In] rated current | 63 A |
Network type | AC |
Earth-leakage sensitivity | 300 mA |
Earth-leakage protection time delay | Instantaneous |
Earth-leakage protection class | Type AC |
Complementary | |
Device location in system | Outgoer |
Network frequency | 50/60 Hz |
[Ue] rated operational voltage | 380...415 V AC 50/60 Hz |
Residual current tripping technology | Voltage independent |
Rated breaking and making capacity | Idm 1500 A |
Im 1500 A | |
Rated conditional short-circuit current | 10 kA |
[Ui] rated insulation voltage | 500 V AC 50/60 Hz |
[Uimp] rated impulse withstand voltage | 6 kV |
Surge current | 250 A |
Contact position indicator | Yes |
Control type | Toggle |
Mounting mode | Clip-on |
Mounting support | DIN rail |
9 mm pitches | 8 |
Height | 91 mm |
Width | 72 mm |
Depth | 73.5 mm |
Product weight | 0.37 kg |
Colour | White |
Mechanical durability | 20000 cycles |
Electrical durability | AC-1: 15000 cycles |
Locking options description | Padlocking device |
Connections - terminals | Single terminal top or bottom 1…35 mm² rigid |
Single terminal top or bottom 1…25 mm² flexible | |
Single terminal top or bottom 1…25 mm² flexible with ferrule | |
Wire stripping length | 14 mm for top or bottom connection |
Tightening torque | 3.5 N.m top or bottom |
Environment | |
Standards | EN/IEC 61008-1 |
EN/IEC 61008-2-1 | |
IP degree of protection | IP20 conforming to IEC 60529 |
IP40 (modular enclosure) conforming to IEC 60529 | |
Pollution degree | 3 |
Electromagnetic compatibility | 8/20 µs impulse withstand, 250 A conforming to EN/IEC 61008-1 |
Ambient air temperature for operation | -5…60 °C |
Ambient air temperature for storage | -40…85 °C |
| Weight | 0.370000 |
|---|---|
| Brand | Schneider Electric |
| Model | A9R44463 |
| Color | White |
| Warranty | 1 Year |
| Depth [cm] | 7.35 |
| Width [cm] | 7.2 |
| Height [cm] | 9.1 |
| Range | Acti 9 RCCB |
| Family | HDCFD |
| Type | Residual current circuit breaker (RCCB) |
| Poles | 4P |
| Breaker Capacity | Acti9 ID/RCCB 6K |
| [In] Rated Current | 63A |
| IP Degree of Protection | IP20 |
