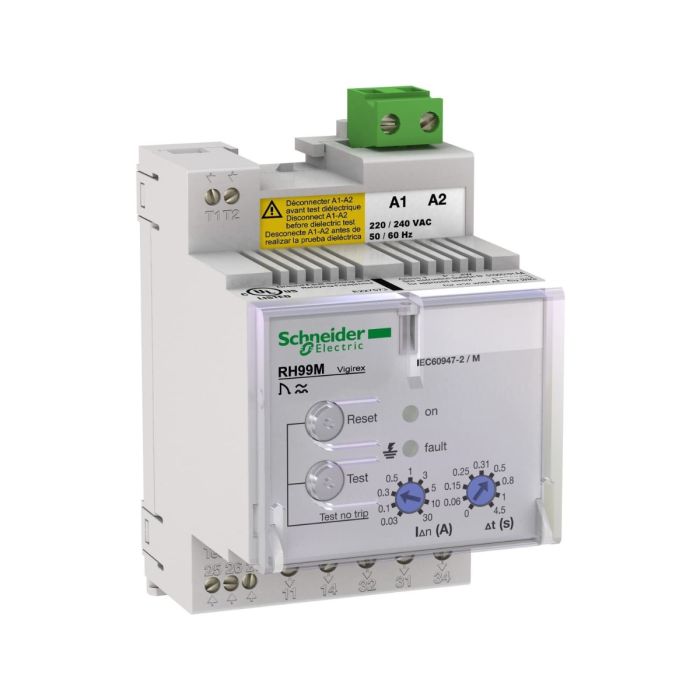

Schneider Electric Earth-leakage relay RH99M with automatic reset - 0.03..30 A - 0..4.5 s - 240 V
Range: Vigipact
Product Type: Residual Current Monitoring Relay
Sensitivity: 30mA/30A
Mounting: DIN Rail
VigiPacT RH99M is a DIN rail mounting residual current monitoring relay. It monitor drops in electrical insulation due to ageing of cables or extensions in the installation. It measures the earth leakage current in an electrical installation via its associated toroid. A control signal is issued by the relay when the residual-current operating threshold is overrun. The operational supply voltage is 220/240VAC 50/60Hz. The current sensitivity is selectable with 9 thresholds from 30 mA to 30 A. The time delay is selectable with 9 settings from instantaneous to 4.5s. There is an automatic reset after a fault clearance. The monitored distribution system voltage is up to 1000 VAC 50/60/400 Hz. It is installed on a DIN-rail inside a switchboard and the protection degree is IP40. It must be associated with a compatible Schneider Electric type A toroid or rectangular sensor.
Specifications:
| |
Main | |
| Range | VigiPacT |
| device short name | RH99M |
| Product or component type | Monitoring relay |
| Relay application | Monitoring relay |
| mounting support | DIN rail |
| Type of setting | Selector |
| Residual earth-leakage sensitity adjustment type | Adjustable 9 settings |
| Earth-leakage sensitivity | 0.03…30 A |
| Earth-leakage time delay | Instantaneous for 0.03 A |
| Adjustable 9 settings 0…4.5 s for 0.03…30 A | |
| Threshold setting | 0.03...30 A alarm |
| Current sensors compatibility | VigiPacT TOA earth leakage current sensor |
| VigiPacT A earth leakage current sensor | |
| VigiPacT L earth leakage current sensor | |
| [Ithe] conventional enclosed thermal current | 0.333333333 |
| Minimum load | 10 mA at 12 V |
| [Us] rated supply voltage | 220...240 V AC 50/60 Hz 55...110 % |
| Power consumption in VA | 4 VA |
| Monitored distribution system | 1000 V - AC at 50/60 Hz (maximum) |
| 1000 V - AC at 400 Hz (maximum) | |
| Earthing system | TT |
| TN-S | |
| [Uimp] rated impulse withstand voltage | 8 kV |
| Complementary | |
| Test function | Local |
| Remote test | |
| Monitoring | Electronics (continuous) |
| Power supply (continuous) | |
| Relay/sensor link (continuous) | |
| Type of measurement | Earth fault current internal measurement, range: 80...100 % |
| Tamperproof of settings | Protected by sealable cover |
| Connections - terminals | Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12 |
| Auxiliary power supply: terminal block cable(s) 0.2…2.5 mm² rigid AWG 24...AWG 12 | |
| Auxiliary power supply: terminal block cable(s) 0.25…2.5 mm² flexible with ferrule AWG 24...AWG 12 | |
| Fault: screw terminal cable(s) 0.2…2.5 mm² flexible AWG 24...AWG 12 | |
| Fault: screw terminal cable(s) 0.2…4 mm² rigid AWG 24...AWG 12 | |
| Fault: screw terminal cable(s) 0.25…2.5 mm² flexible with ferrule AWG 24...AWG 12 | |
| Relay test and fault reset: screw terminal cable(s) 0.14…1 mm² flexible AWG 26...AWG 16 | |
| Relay test and fault reset: screw terminal cable(s) 0.14…1.5 mm² rigid AWG 26...AWG 16 | |
| Relay test and fault reset: screw terminal cable(s) 0.25…0.5 mm² flexible with ferrule AWG 26...AWG 16 | |
| Wire stripping length | Auxiliary power supply: 7 mm for top connection |
| Fault: 8 mm for bottom connection | |
| Relay test and fault reset: 5 mm for bottom connection | |
| Sensor: 5 mm for top connection | |
| Voltage presence: 8 mm for bottom connection | |
| Tightening torque | Auxiliary power supply: 0.6 N.m top |
| Fault: 0.6 N.m bottom | |
| Relay test and fault reset: 0.25 N.m bottom | |
| Sensor: 0.25 N.m top | |
| Voltage presence: 0.6 N.m bottom | |
| 9 mm pitches | 6 |
| Width | 54 mm |
| height | 81 mm |
| Depth | 74 mm |
| Net weight | 0.3 kg |
| IP degree of protection | IP40 on front face: conforming to EN/IEC 60529 |
| IP30 on side parts: conforming to EN/IEC 60529 | |
| IP20 on connection terminals: conforming to EN/IEC 60529 | |
| IK degree of protection | IK07 conforming to EN 50102 |
| Mechanical robustness | Fire resistance conforming to IEC 60695-2-1 |
| IK protection 2 joules: IK07 conforming to EN 50102 | |
| Vibrations 13.2...100 Hz: 0.7 g | |
| Vibrations 2...13.2 Hz: +/- 1 mm | |
| Environment | |
| Overvoltage category | IV |
| Electrical shock protection class | Class II |
| Electromagnetic compatibility | Conducted and radiated emissions: , B, conforming to CISPR 11 |
| Conducted radio-frequency immunity test: , 3, conforming to IEC 61000-4-6 | |
| Electrostatic discharge immunity test: , 4, conforming to IEC 61000-4-2 | |
| High-energy conducted susceptibility: , 4, conforming to IEC 61000-4-5 | |
| Low-energy conducted susceptibility: , 4, conforming to IEC 61000-4-4 | |
| Radiated susceptibility: , 3, conforming to IEC 61000-4-3 | |
| Relative humidity | 95 % at 55 °C |
| Pollution degree | 3 conforming to IEC 60664-1 |
| Ambient air temperature for operation | -35…70 °C |
| Ambient air temperature for storage | -55…85 °C |
| Weight | 0.400000 |
|---|---|
| Brand | Schneider Electric |
| Model | 56193 |
| Depth [cm] | 7.4 |
| Width [cm] | 5.4 |
| Height [cm] | 8.1 |
| Range | VigiPacT |
| Family | PPCCB |
| IP Degree of Protection | IP40 |
