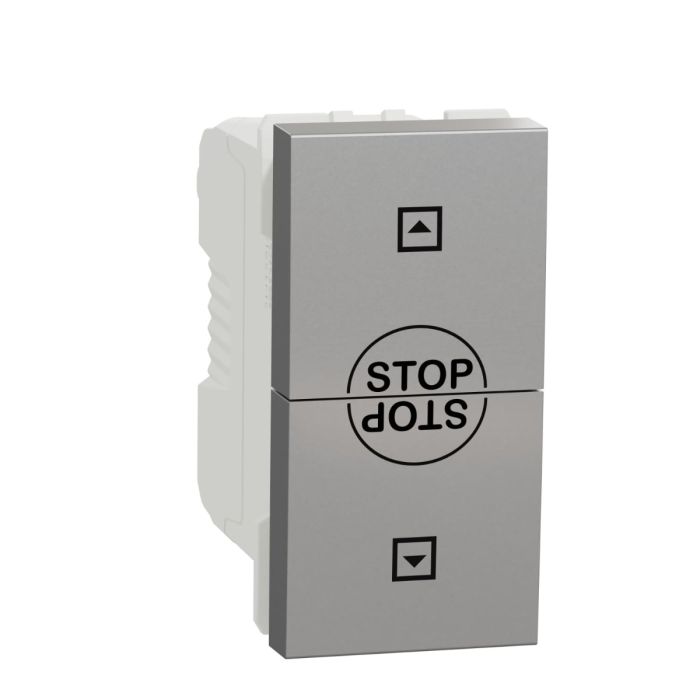

شنايدر إليكتريك نيو يونيكا مفتاح ستارة بمسمار 10 امبير، الومنيوم
النطاق: نيو يونيكا
نوع المنتج: مفتاح ستارة دوارة
وضع التثبيت: تثبيت بالضغط
اللون: ألومنيوم
Schneider Electric New Unica switch NU310830SC is a mechanism in color aluminium. This is a roller blind switch. The fixing mode of this device is clip-in. Its rated current is 10AX. It is 22.4 mm in width,45 mm in height and 33 mm in depth with an embedding depth of 21 mm. The IP rating of this device is IP20. Its connection terminals are screw terminals. The switch is made of ASA + PC,making it resistant and durable. Besides,there is a UP,down marking on the surface. New Unica includes a suite of new designs,colors and materials. Users benefit from beautiful design that match their style and innovative products. New Unica is designed with clever features to be flexible,easy to understand and quick to install providing solutions for all customers requirements.
| Main | |
| Range | New Unica |
| Device application | Control |
| Product or component type | Roller blind switch |
| Device presentation | Mechanism |
| Rated current | 10 AX |
| [Ue] rated operational voltage | 250 V |
| Network type | AC |
| Network frequency | 50/60 Hz |
| Fixing mode | Clip-in |
| Colour tint | Aluminium |
| Main colour tint | Aluminium |
| Complementary | |
| Device mounting | Flush |
| Number of modules | 1 module |
| Technology type | Electromechanical |
| Actuator | Rocker |
| Number of rocker | 2 |
| Switch function | 1-pole 2-way |
| Switch application | Roller blind |
| Number of poles | 1 |
| Contacts type and composition | 1 C/O |
| Mechanical interlocking | Interlock between up/down |
| [Iu] rated interrupted current | 2.5 A for motor |
| Opening distance | > 3 mm |
| Pilot light | Without LED |
| Marking | UP |
| Down | |
| Connections - terminals | Screw terminals |
| Cable cross section | 2.5 mm² flexible cable |
| 1.5…2.5 mm² flexible cable | |
| 2.5 mm² rigid cable | |
| 1.5…2.5 mm² rigid cable | |
| Minimum load breaking capacity | 200 operations 1.25 In and 1.1 Un, cos phi = 0.3 |
| Electrical durability | 10000 cycles, cos phi = 0.6 |
| Insulation resistance | > 5 MOhm at 500 V |
| Dielectric strength | 2000 V |
| Material | ASA + PC: mechanism cover |
| ABS (acrylonitrile butadiene-styrene): mechanism cover | |
| Standards | LV directive |
| EN 60669-1 | |
| EMC directive | |
| Product certifications | ISI |
| CE | |
| Ambient air temperature for operation | -5…40 °C |
| Ambient air temperature for storage | -5…40 °C |
| Embedding depth | 31.5 mm |
| Depth | 40.6 mm |
| Width | 22.5 mm |
| Height | 45 mm |
| Net weight | 0.036 kg |
| Environment | |
| IK degree of protection | IK04 |
| IP degree of protection | IP4X |
| Environmental characteristic | Window-cleaning fluid |
| UV resistant | |
| Acetone | |
| Petrol | |
| Liquid soap | |
| Bleach | |
| Oil | |
| Alcohol |
| الوزن | 0.029000 |
|---|---|
| الماركة | شنايدر إليكتريك |
| الموديل | NU310830SC |
| اللون | ألومنيوم |
| مجموعة منتجات | يونيكا |
| العائلة | HDCWD |
| نوع المنتج | مفتاح ستارة |
| عدد الفتحات | 1 فتحة |
| الوظيفة | التحكم |
| طريقة التركيب | عاشق ومعشوق |
| عدد الراكات | 2 راك |
| التيار المقنن | 10 AX |
| درجة الحماية ضد الغبار والماء IP | IP4X |
| درجة الحماية ضد التأثيرات الميكانيكية الخارجية IK | IK04 |
